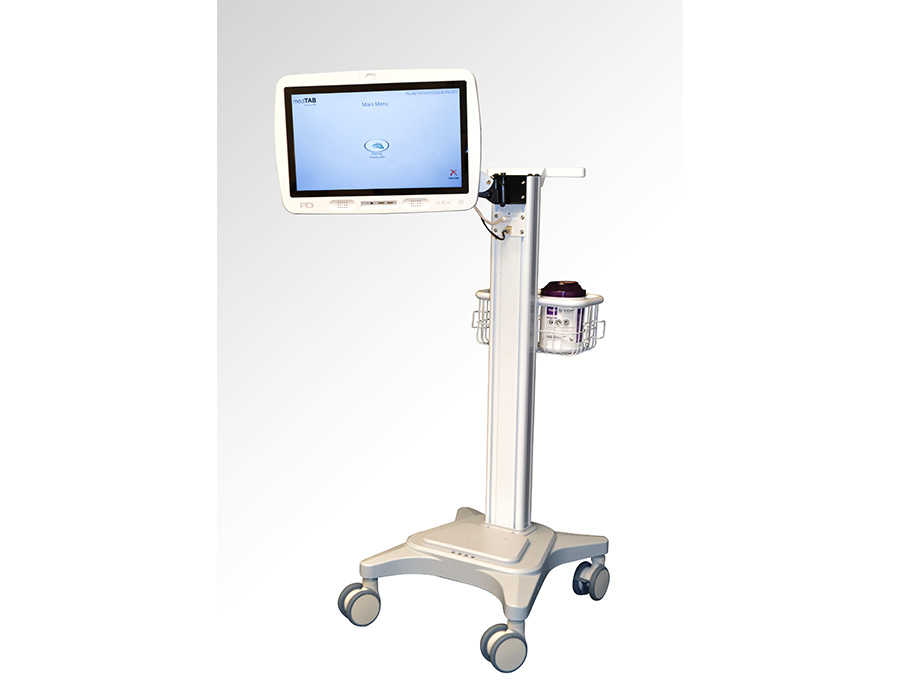

Telehealth Cart - Teleray
Most Intuitive Video Call Experience
Part Numbers
PDI-TC16, 15.6" Touchscreen, Cart, Includes First Year of Teleray Software
PDI-TC19, 18.5" Touchscreen, Cart, Includes First Year of Teleray Software
Designed to Connect Patients, Safely.
The most easy to use system for video calls by patients and Senior Living Residents for telemedicine and calls to stay connected with friends and families. Built for Infection Control and use during the Coronavirus and beyond. Includes a 1-Year Subscription of Teleray HIPAA-Compliant Software.
Meets HIPAA Compliance
The PDi Telehealth video call cart system with HIPAA-Compliant Teleray Software capability upholds PDi's high standards for safety, cost-effectiveness, and functionality for healthcare.
All-in-One Video Call System
Integrated camera/mic on medTAB UL-Listed hospital safe touchscreen displays means a "no fuss" solution for healthcare staff to manage.
Quick Telehealth Consults
Simple to use software and portable cart make it easy to implement by healthcare staff.
No Battery to Charge
Requires Internet signal (WIFI or ENET) and AC power. No dead batteries to worry over.
Recommended Accessories
Features
- UL-Listed hospital-grade touchscreen device
- For use with Teleray HIPAA-Compliant software for telemedicine, by Nautilus Medical. First year Teleray subscription included with initial purchase and includes free tech support by Nautilus Medical for one year.
- Healthcare providers can quickly initiate a telehealth consult
- Senior residents or patients can easily video chat with staff, friends and family too!
- Built for healthcare disinfection standards and infection controls. Includes a basket for disinfection wipes.
- Android™-based OS
- 48" tall mobile cart
- Few parts to assemble
- AC powered, no batteries
- Integrated ENET cable or use WIFI
- Easy to clean and disinfect
- Adjustable arm height and TV tilt
- 4" Smooth gliding casters, rear locking
- Easy to move on carpet or hard floors
- Small footprint wheel base 19"x 22"
- 2-year warranty
Specifications
Panel
| Diagonal Size | 15.6" (39.6 cm) |
|---|---|
| Display Resolution | 1920x1080 (FHD) |
| Contrast Ratio | 800:1 |
| Luminance | 450 nits |
| Backlight Life | 50,000 hours |
| Backlight Type | LED |
Input/Output
| RF Input | 1 (75ohm Unbalanced) |
|---|---|
| HDMI | Optional |
| ENET, CCI, MTI* | Optional |
| Speakers | 2x1.7Watt RMS |
| Front Headphone | Yes, 1/8" jack |
| Pillow Speaker | Optional |
*Call to inquire about additional inputs available.
Dimensions
| Weight | 7 lbs. (3.2 kg) |
|---|---|
| Unit Dimension - Swivel (W/H/D) | 15.2 x 14.8 x 2.5 (in) |
| Unit Dimension - VESA (W/H/D) | 15.2 x 11.3 x 2.5 (in) |
| MPEG4/MPEG2 |
Support Standards
| Antenna Input | NTSC, ATSC, Qam in the Clear (Air VHF/ UHF,CATV,IRC,HRC) |
|---|---|
| Pro:Idiom | Yes |
| Dolby Audio | Yes |
Power
| Source | |
|---|---|
| Max Consumption | 34W |
| Normal Consumption | |
| Energy Saver Mode Consumption |
Regulatory
| UL/cUL 60065 Annex Q | Yes |
|---|---|
| FCC Title 15, Part 47, Subpart B | - |
Set-Up Features
| Audio Volume Limiter | Yes |
|---|---|
| Internal Speaker Disable | Yes |
| Min/Max Volume Limiter | Yes |
| Start/Power-on Volume | Yes |
| USB Cloning Capable | Yes |
| TV Cloning | Yes |
|---|---|
| Firmware Updates | Yes |
| PDi Program Remote | PD108-420 |
| Patient TV/DVD Remote | N/A |
| Patient TV-only Remote | Touch Panel |
| Parental Control (V-CHIP) | Yes |
| Auto Power On | Yes |
| Programmable Source Selection | Yes |
|---|---|
| Password Protected Set-up Menus | Yes |
| Channel Enable/Disable | Yes |
| Channel Aliasing/Remapping | Yes |
| Menu OSD | English/French/Spanish |
| Factory Reset | Yes |
Computer Features
| Operating System | Android 7.0 (Nougat) |
|---|---|
| CPU | Arm A53 Quad Core 1.5GHz |
| Wifi | 802.11 b/g/n/ac |
| Wireless Audio | Yes |
| Ethernet | Yes |
| Touchscreen | PCAP |
| RAM | 2GB |
| Storage | 16GB Flash |
| Camera/Microphone | Optional |
Panel
| Diagonal Size | 18.5" (47 cm) |
|---|---|
| Display Resolution | 1366x768 |
| Contrast Ratio | 1000:1 |
| Luminance | 1,000 nits |
| Backlight Life | 50,000 hours |
| Backlight Type | LED |
Input/Output
| RF Input | 1 (75ohm Unbalanced) |
|---|---|
| HDMI | Optional |
| ENET, CCI, MTI* | Optional |
| Speakers | 2x1.7Watt RMS |
| Front Headphone | Yes, 1/8" jack |
| Pillow Speaker | No |
*Call to inquire about additional inputs available.
Dimensions
| Weight | 13 lbs. (5.9 kg) |
|---|---|
| Unit Dimension - Swivel (W/H/D) | 20 x 17 x 2.5 (in) |
| Unit Dimension - VESA (W/H/D) | 20 x 13.75 x 2.5 (in) |
| MPEG4/MPEG2 |
Support Standards
| Antenna Input | NTSC, ATSC, Qam in the Clear (Air VHF/ UHF,CATV,IRC,HRC) |
|---|---|
| Pro:Idiom | Yes |
| Dolby Audio | Yes |
Power
| Source | |
|---|---|
| Max Consumption | 55W |
| Normal Consumption | |
| Energy Saver Mode Consumption |
Regulatory
| UL/cUL 60065 Annex Q | Yes |
|---|---|
| FCC Title 15, Part 47, Subpart B | - |
Set-Up Features
| Audio Volume Limiter | Yes |
|---|---|
| Internal Speaker Disable | Yes |
| Min/Max Volume Limiter | Yes |
| Start/Power-on Volume | Yes |
| USB Cloning Capable | Yes |
| TV Cloning | Yes |
|---|---|
| Firmware Updates | Yes |
| PDi Program Remote | PD108-420 |
| Patient TV/DVD Remote | N/A |
| Patient TV-only Remote | Touch Panel |
| Parental Control (V-CHIP) | Yes |
| Auto Power On | Yes |
| Programmable Source Selection | Yes |
|---|---|
| Password Protected Set-up Menus | Yes |
| Channel Enable/Disable | Yes |
| Channel Aliasing/Remapping | Yes |
| Menu OSD | English/French/Spanish |
| Factory Reset | Yes |
Computer Features
| Operating System | Android 7.0 (Nougat) |
|---|---|
| CPU | Arm A53 Quad Core 1.5GHz |
| Wifi | 802.11 b/g/n/ac |
| Wireless Audio | Yes |
| Ethernet | Yes |
| Touchscreen | PCAP |
| RAM | 2GB |
| Storage | 16GB Flash |
| Camera/Microphone | Optional |
