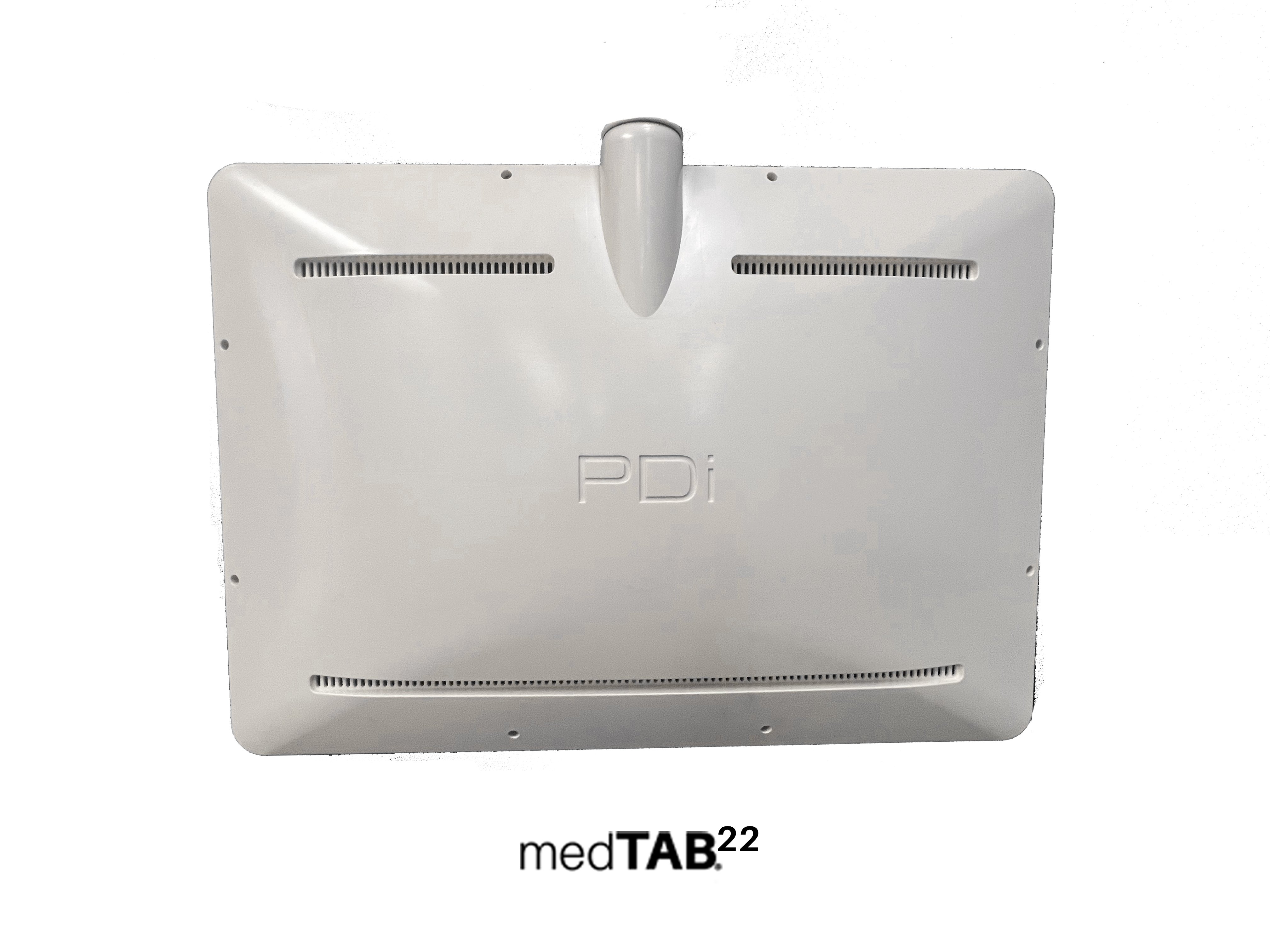

PDi medTAB22 Personal Smart Touch Screen Patient TV - Back view

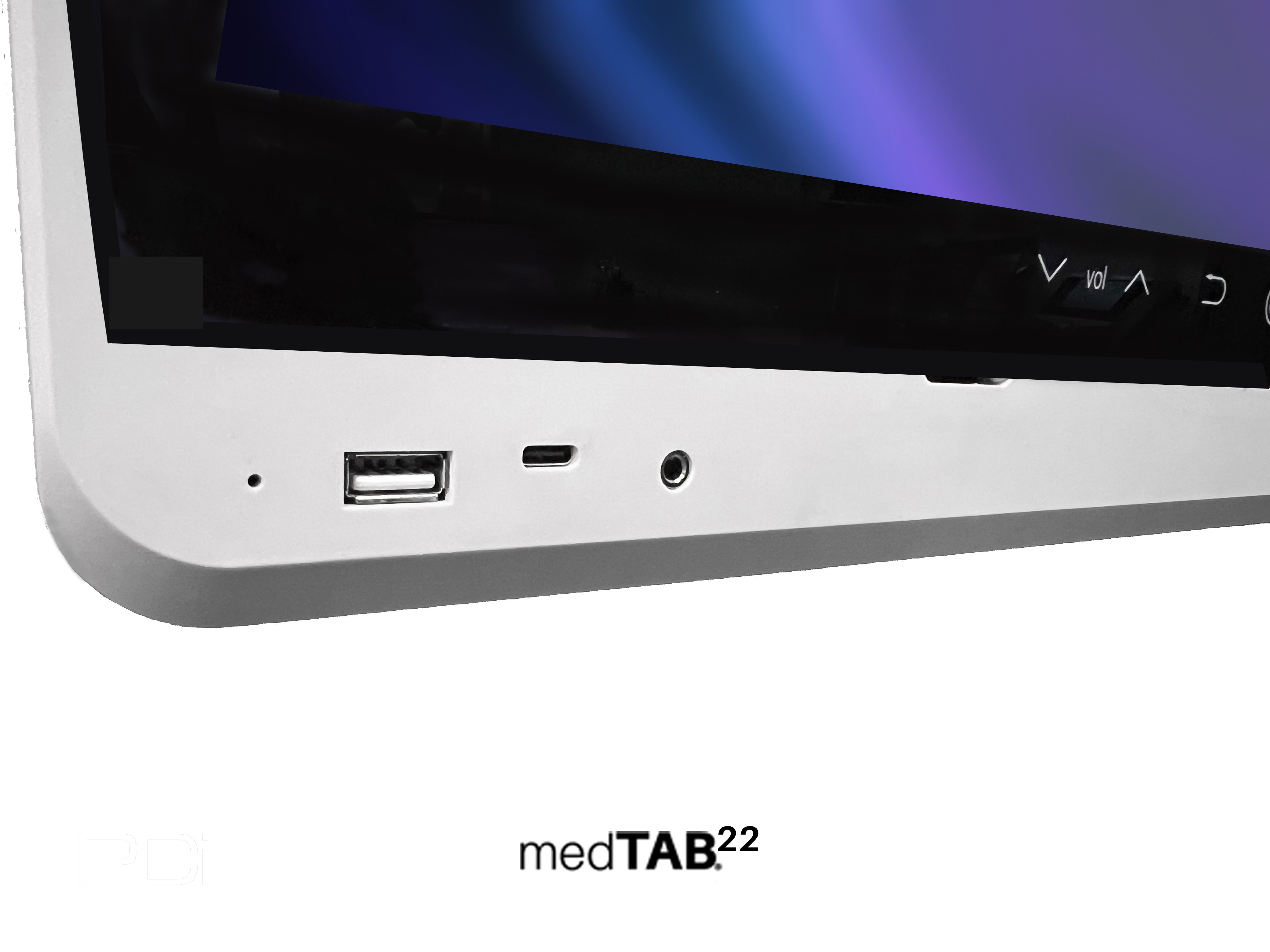

PDi medTAB22 Front USB Ports

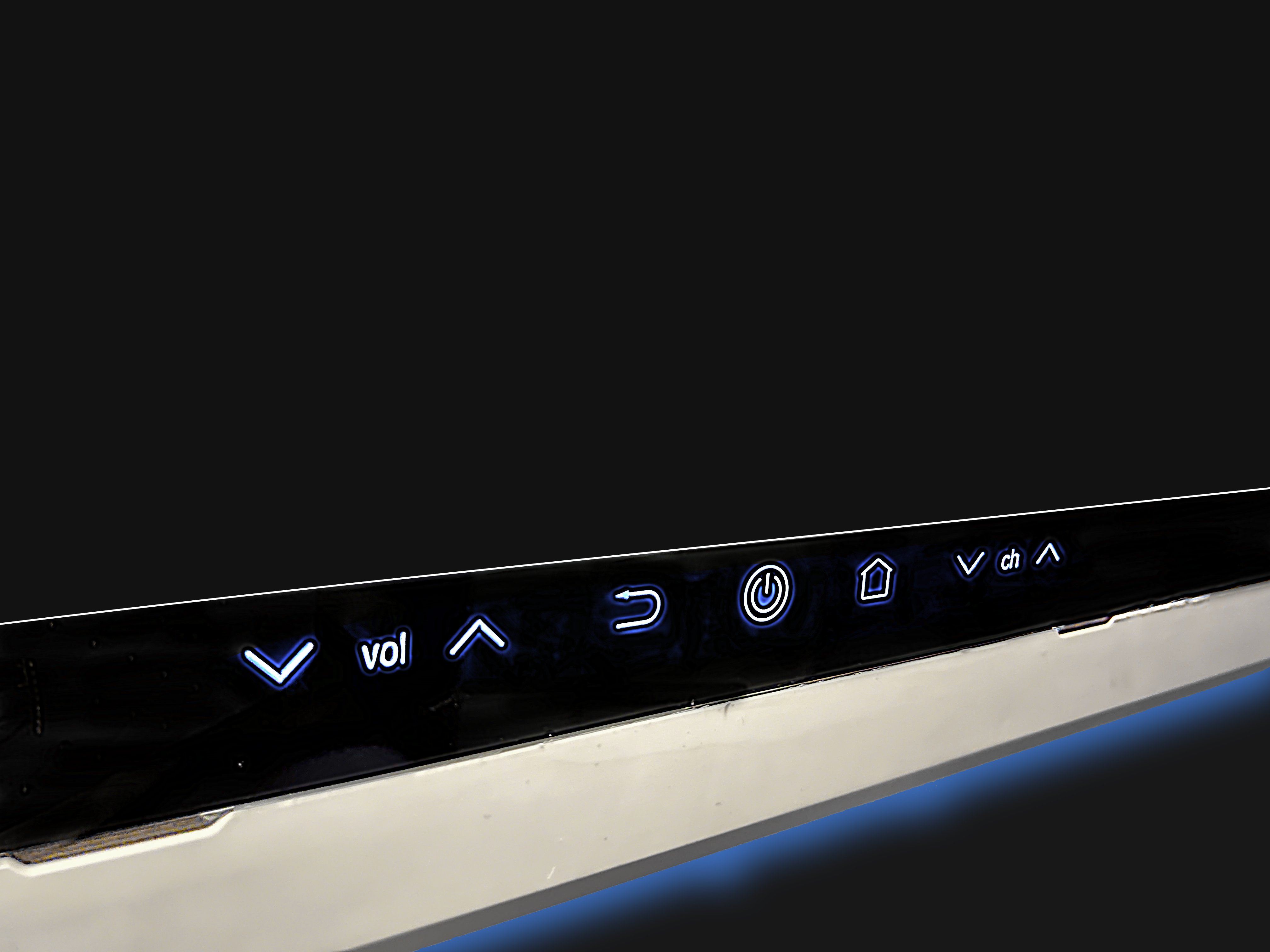

PDi medTAB22 backlit keypad

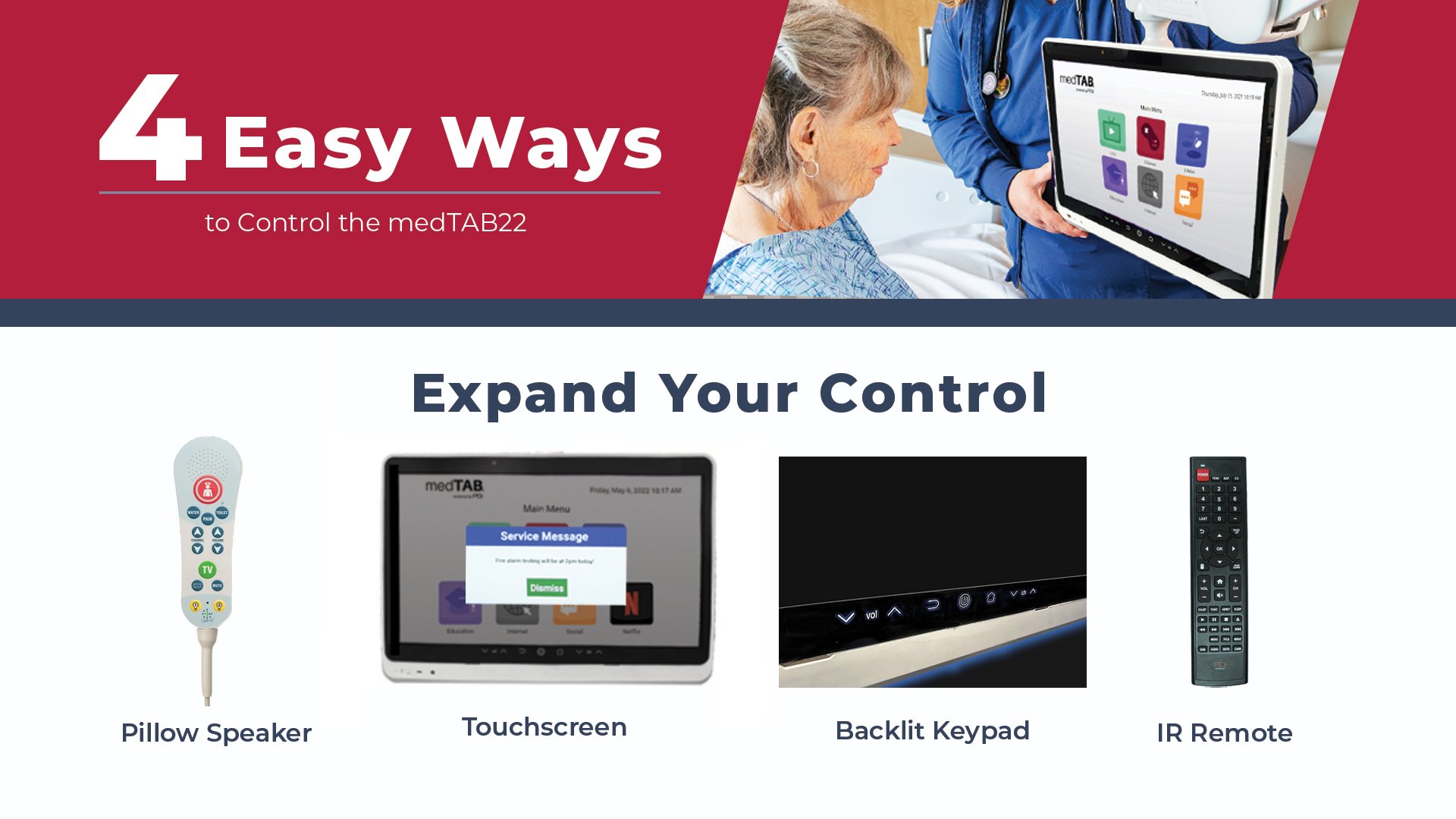

PDi medTAB22 Ways to Control Patient TV

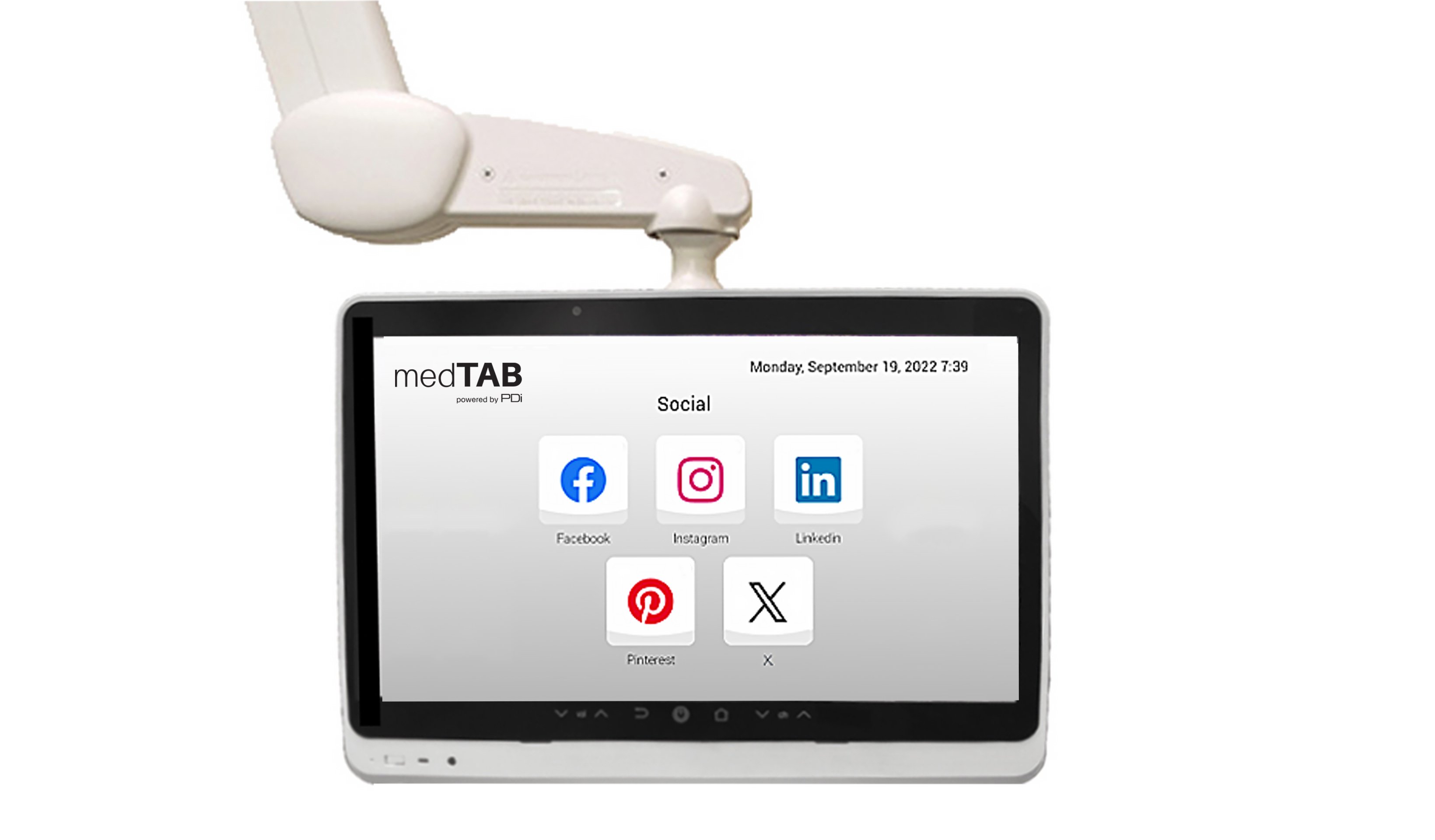

PDi medTAB22 Social Icons

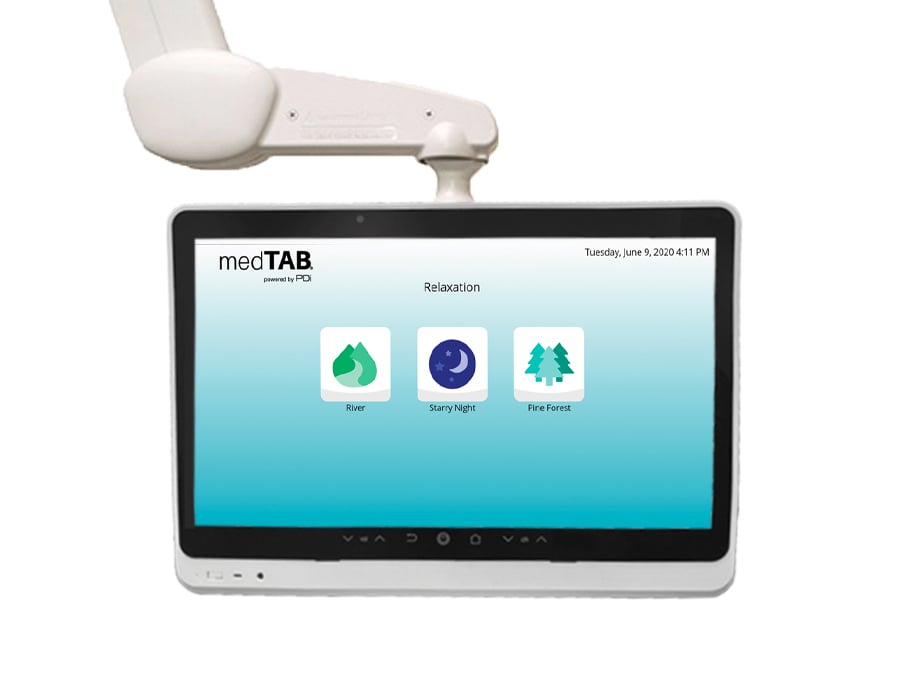

PDi medTAB22 Relaxation Apps Built-in
PDi medTAB22 offline image TV games and relaxation

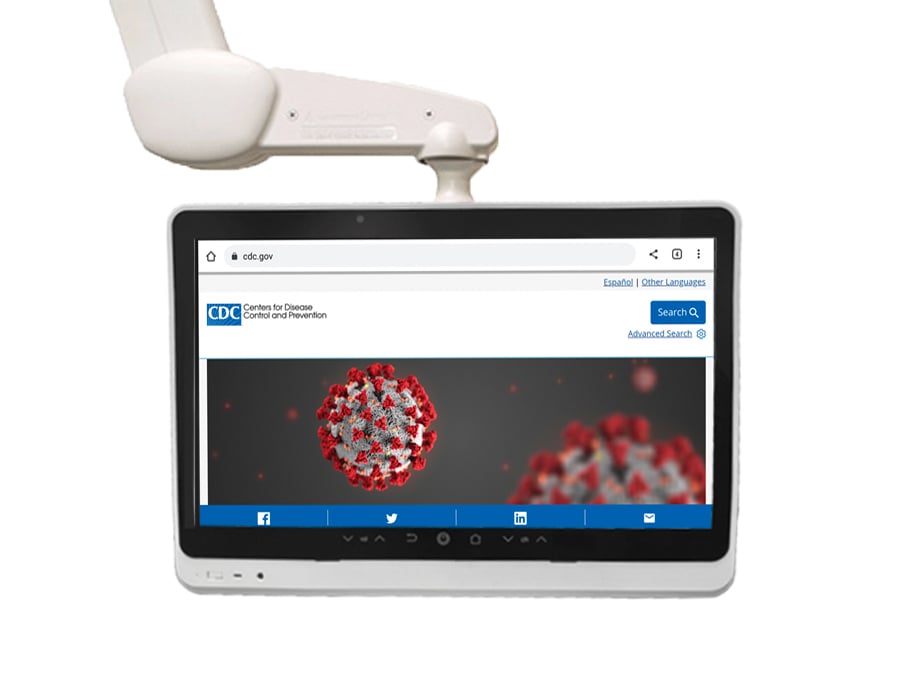

PDi medTAB22 patient education cdc
PDi medTAB22 GENiO custom image
PDi medTAB22 nurse w patient gram

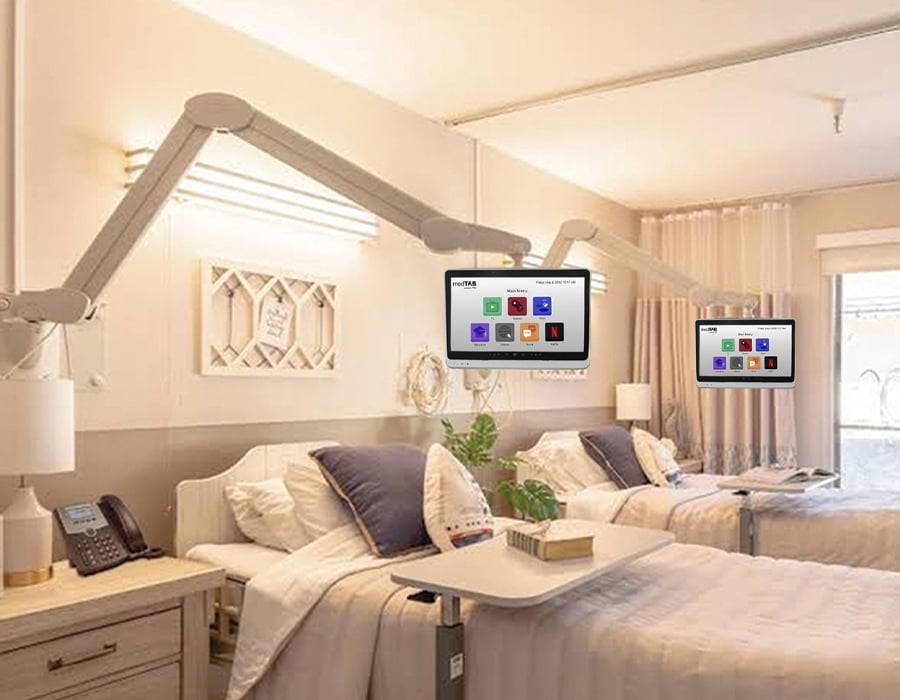

PDi medTAB22 complete arm system rehab hospital

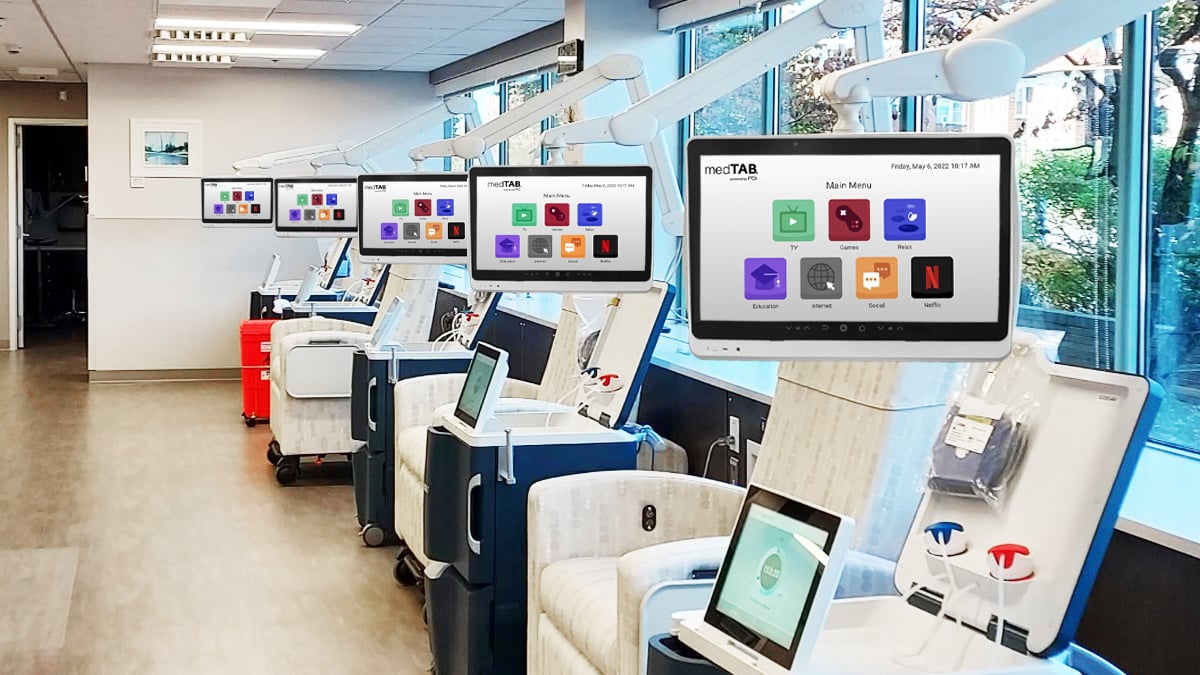

PDi medTAB22 multiple clinic TVs
medTAB22 22
Compatible with GENiO


22" Touchscreen Smart Patient TV

Customize Your Patient Experience with GENiO Cloud Management. This model is also a direct replacement for medTAB19.

Need installation help? Our ProServices team is here for you.

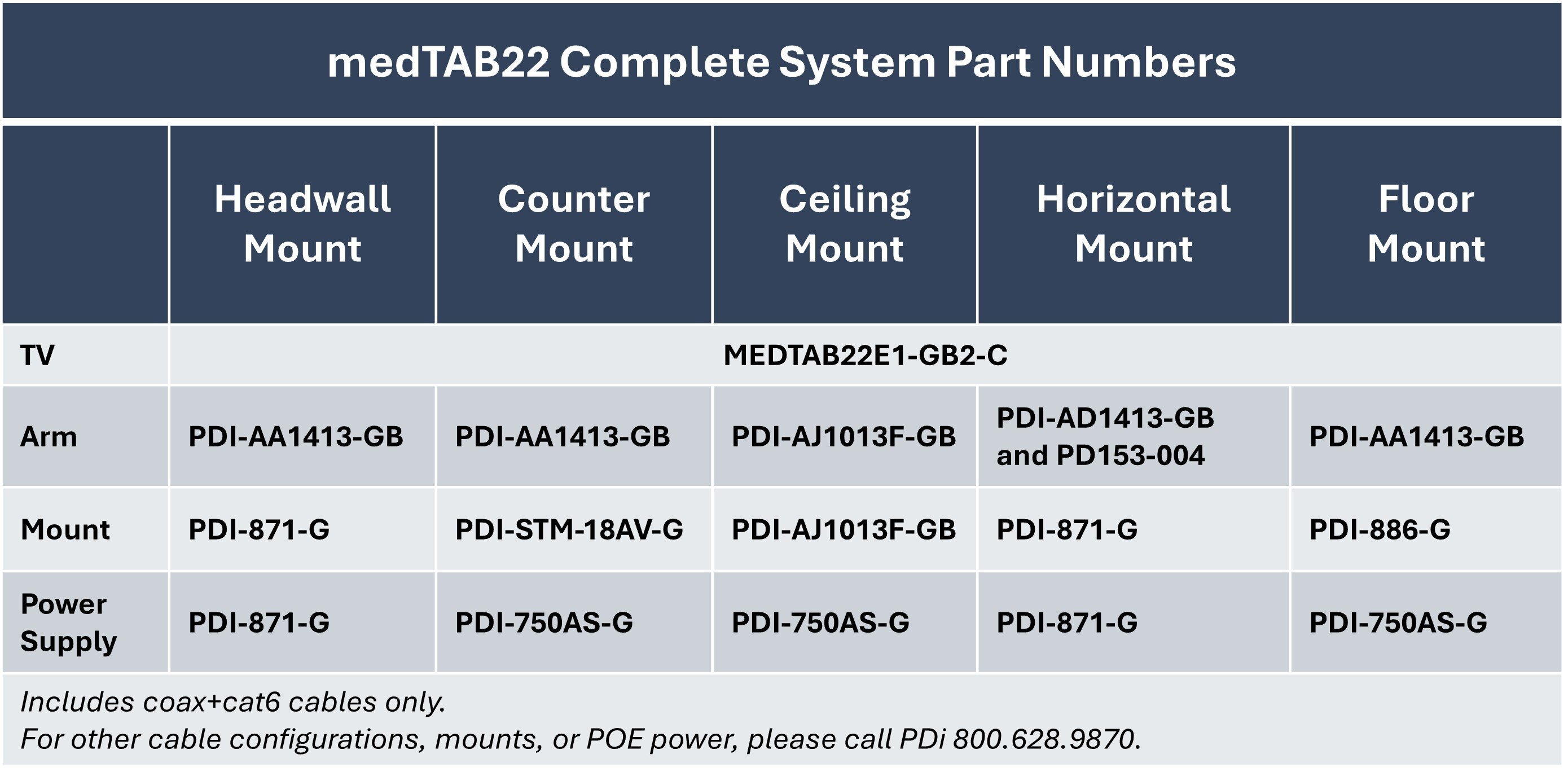

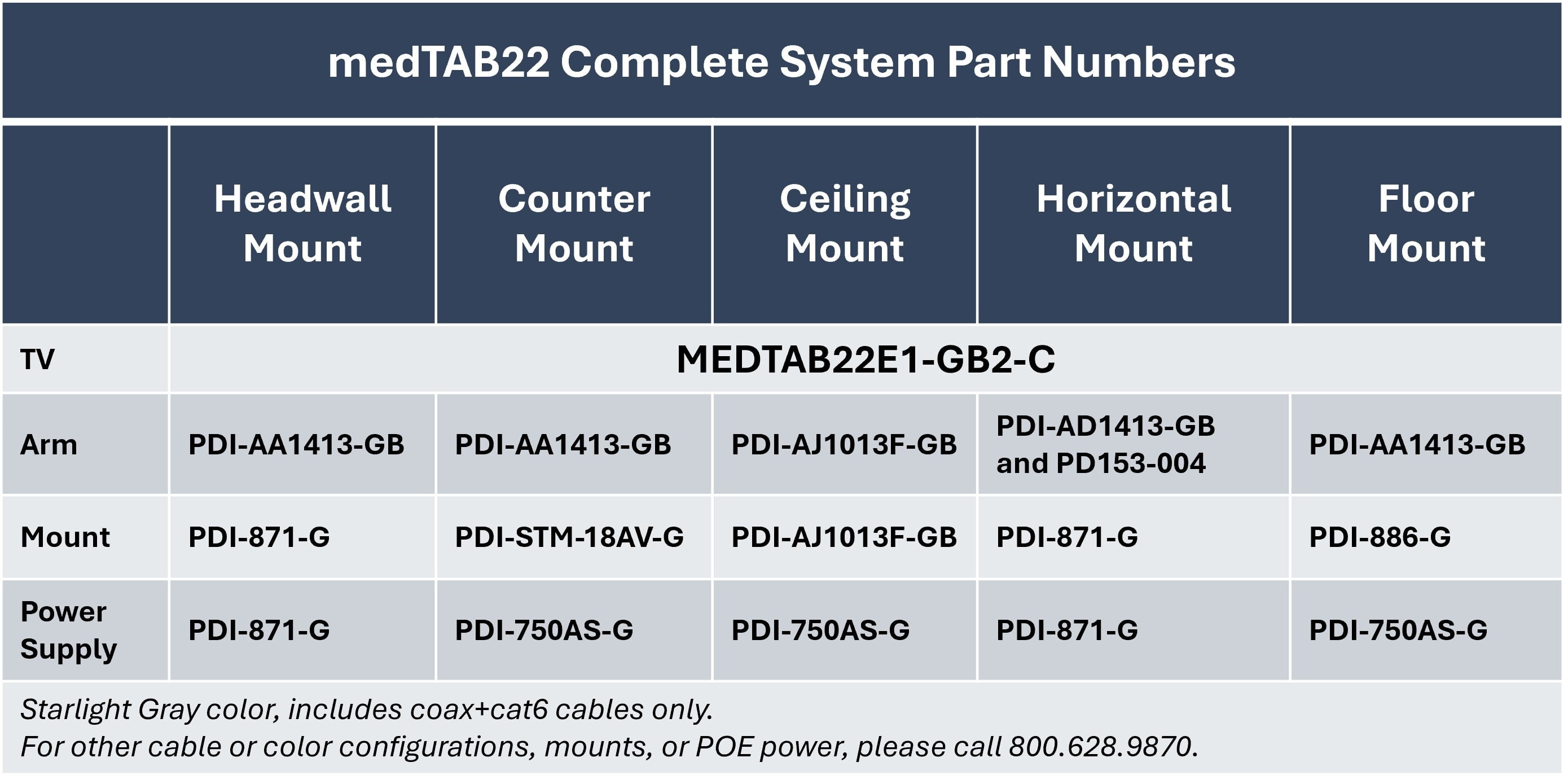

Part Numbers

medTAB22E1-GB2-C, Power over Coax, Android 11.0, Includes 8MP Camera/Mic, Starlight Gray color. GENiO Sold Separately

Made to Engage Your Patients, Your Way.

Create a more comfortable and interactive, digital environment centered around your patients. Out-of-the-box offer patients more than just simple TV. medTAB touchscreens include expanded entertainment with built-in TV, games, and relaxation, NO internet required. Customize the experience with the affordable GENiO cloud-based platform by PDi.

Your Content Matters

Provides creative ways for you to connect with patients on their bedside TV. Keep patients informed, educated, relaxed and satisfied, your way.

Empower Patients with Technology

Allow patients some control to help themselves. Provide information and self-service such as video calls or meal ordering.

Provide Efficient Patient Education

Improve workflows and consistently deliver patient education and information to engage patients in a meaningful way.

Affordable In-room Interactive TV

Saves time and money. Cloud-based. No ADT integration or on-site concierge staff. Save time with built-in camera/mic and keyboard, no clunky external devices to manage.

  • medTAB arm-mounted patient displays reduce neck, back and eye strain. PDi builds the complete, arm-mounted touchscreen patient TV system with secure PDi arms, arm mounts, and low-voltage power supplies.

  • Bleach cleanable with up to 5% solution. Download cleaning instructions here.

  • UL/cUL Listed - Built to UL healthcare-grade, low-voltage standards for use in USA and Canada

  • All-in-One Android™ based Smart patient TV includes optional access to GENiO cloud-based remote device management software to customize your patient experience.

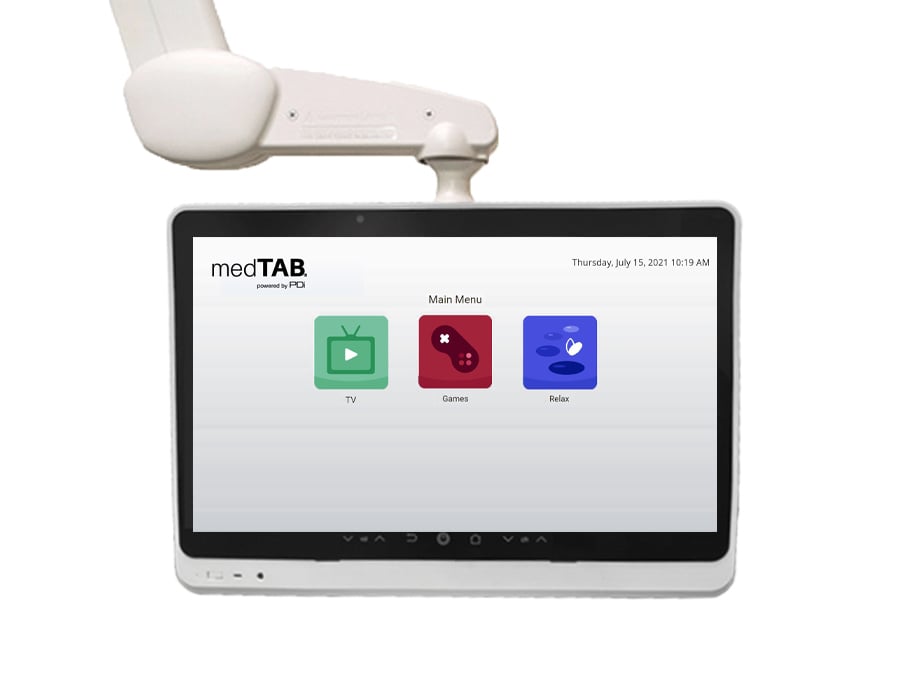

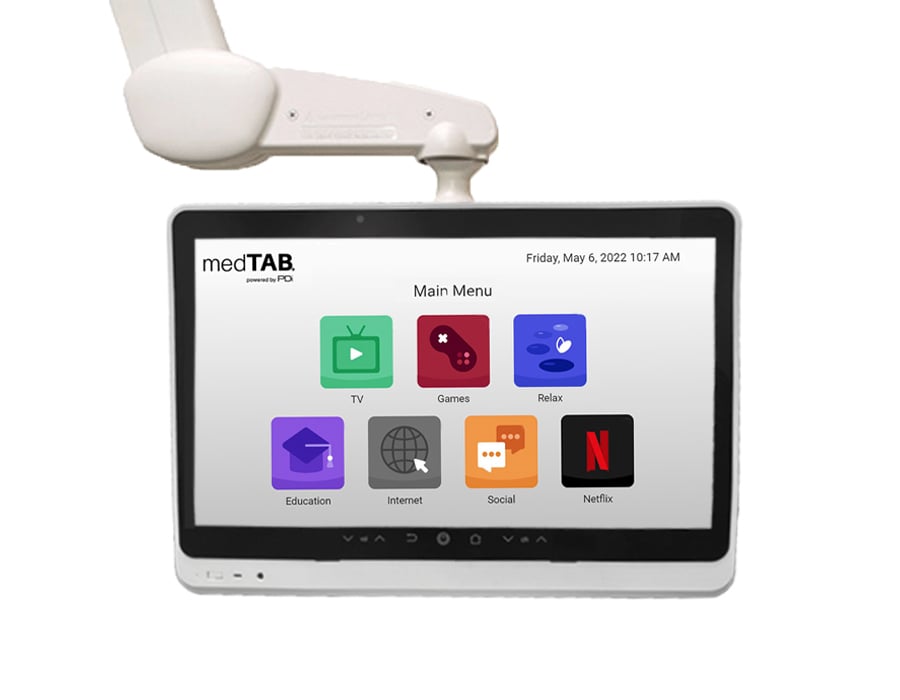

  • Setup choices out-of-the-box include 3-icon image for TV, games and relaxation without internet access or the 6-icon image for full internet access, now including weblink for patient education.

  • WIFI and Ethernet Cable included (Note: remember to specify cables in PDi arm part numbers too!)

  • Integrated 8MP Camera/Mic is optional on this model.

  • IR Receiver

  • USB-C charging port

  • Meets UL Standard 62368-1 Annex DVB

  • Optional connections include CCI, 2xHDMI, and pillow speaker input

  • Automatically wipes user data for patient privacy.

  • Easy-to-clean glass screen and antimicrobial cabinet designed for infection control

  • LED lighted PCAP multi-touch touchscreen

  • Low voltage set, continuously powered over coax or available POE

  • Panel life designed to last more than 7 years when powered on 18+hrs/day

  • Compatible with PDi arms and arm mounts or available as rear VESA mount 75x75mm or 100x100

  • 3-year warranty included or upgrade to 5-year Extended Warranty

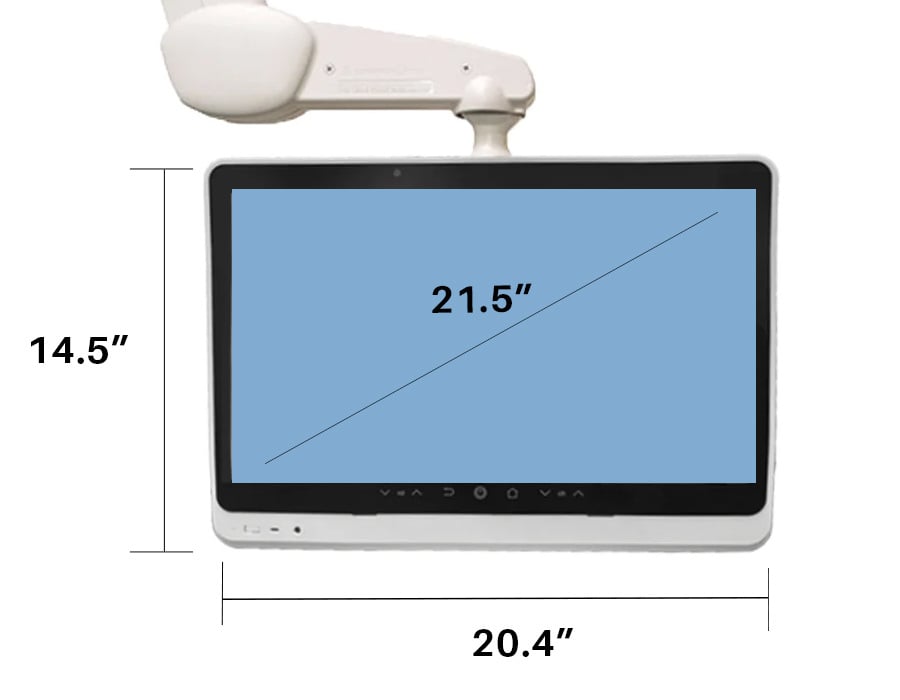

Dimensions inches (W x H x D):

Swivel 20.4” x 17.75” x 3” (51.9 x 45.2 x 7.6 cm)

Rear Vesa 20.4” x 14.5” x 3” (51.9 x 36.9 x 7.6 cm)

Weight: 13 lbs (5.9 kg)

1920 x 1080 Display Resolution
LED Backlight

High Brightness 1000 Nits
Lamp life up to 50,000 Hours

TV Features

Pro:Idiom® and Pro:Idiom-M® / MPEG4 /MPEG2

USB Clone for Programmable TV settings
16:9, 14:9, 4:3 Aspect Ratio

Android 11.0 OS
1.9 GHz Quad Core Processor


16 GB Memory

GENiO Remote Content Management, Available by Subscription or One-time Customization Fee

Audio & Video
Speakers: 2@1.7Watt RMS
1/8” Headphone Jack

8MP Camera optional
