24" A-Series Wall TV
24" Smart Hospital TV
Integrated Pro:Idiom®. RF-HEMiS™ and GENiO™ Compatible

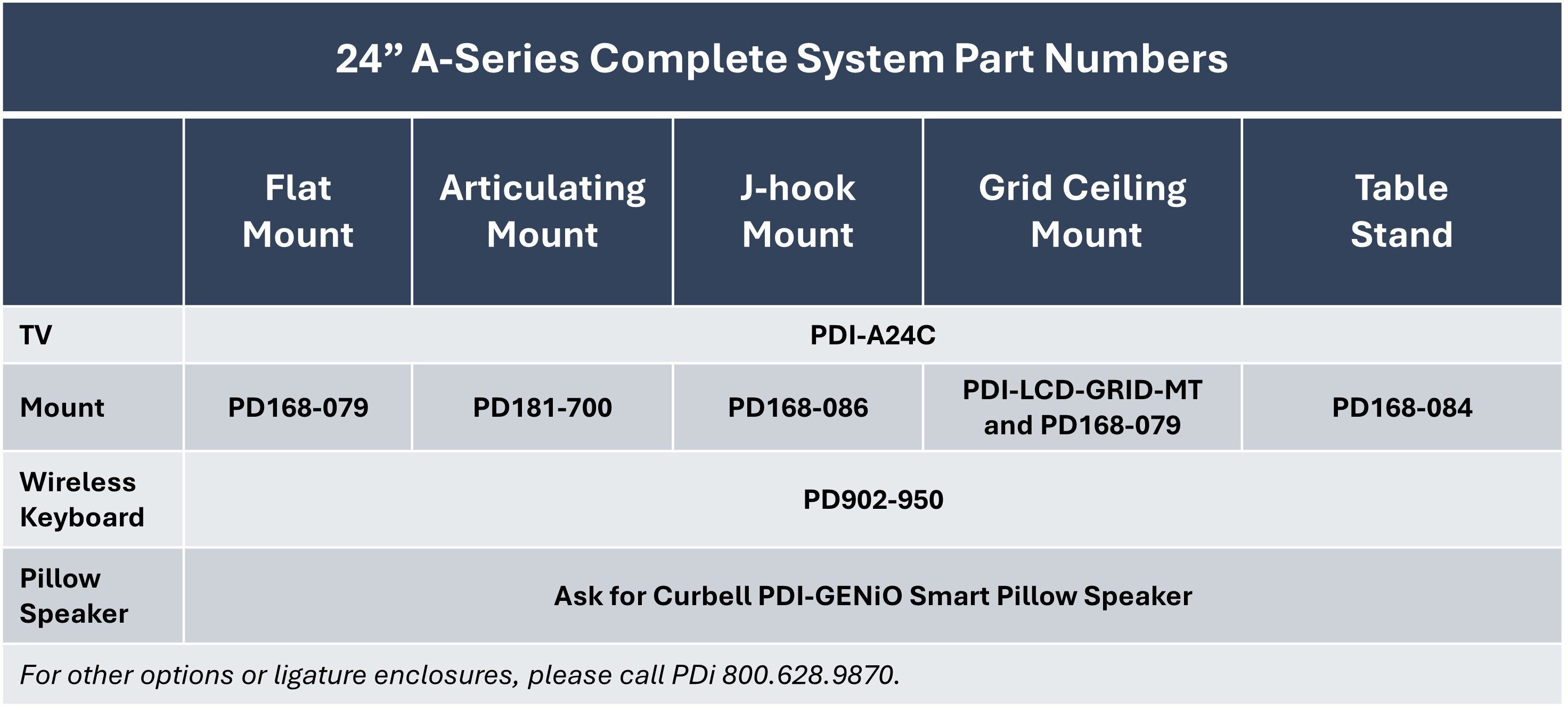

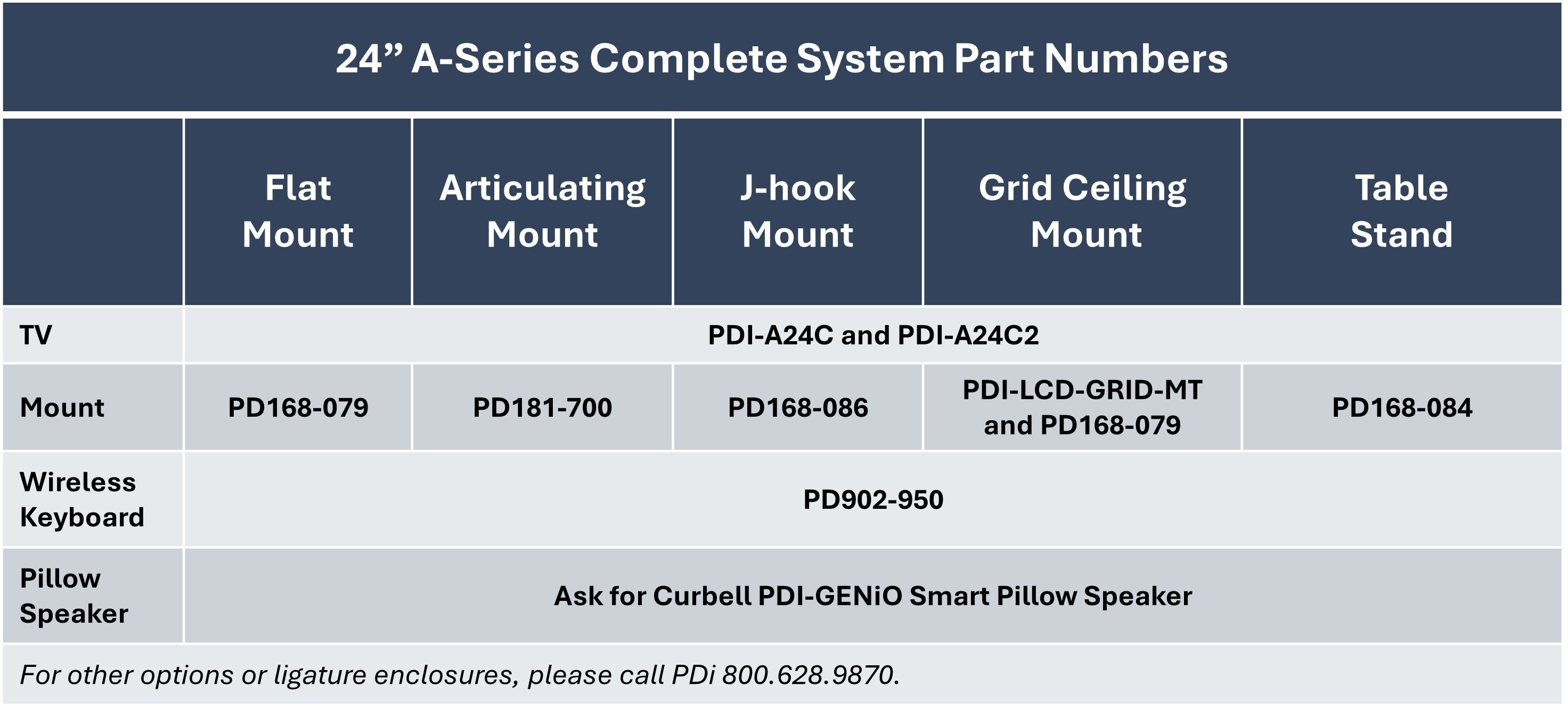

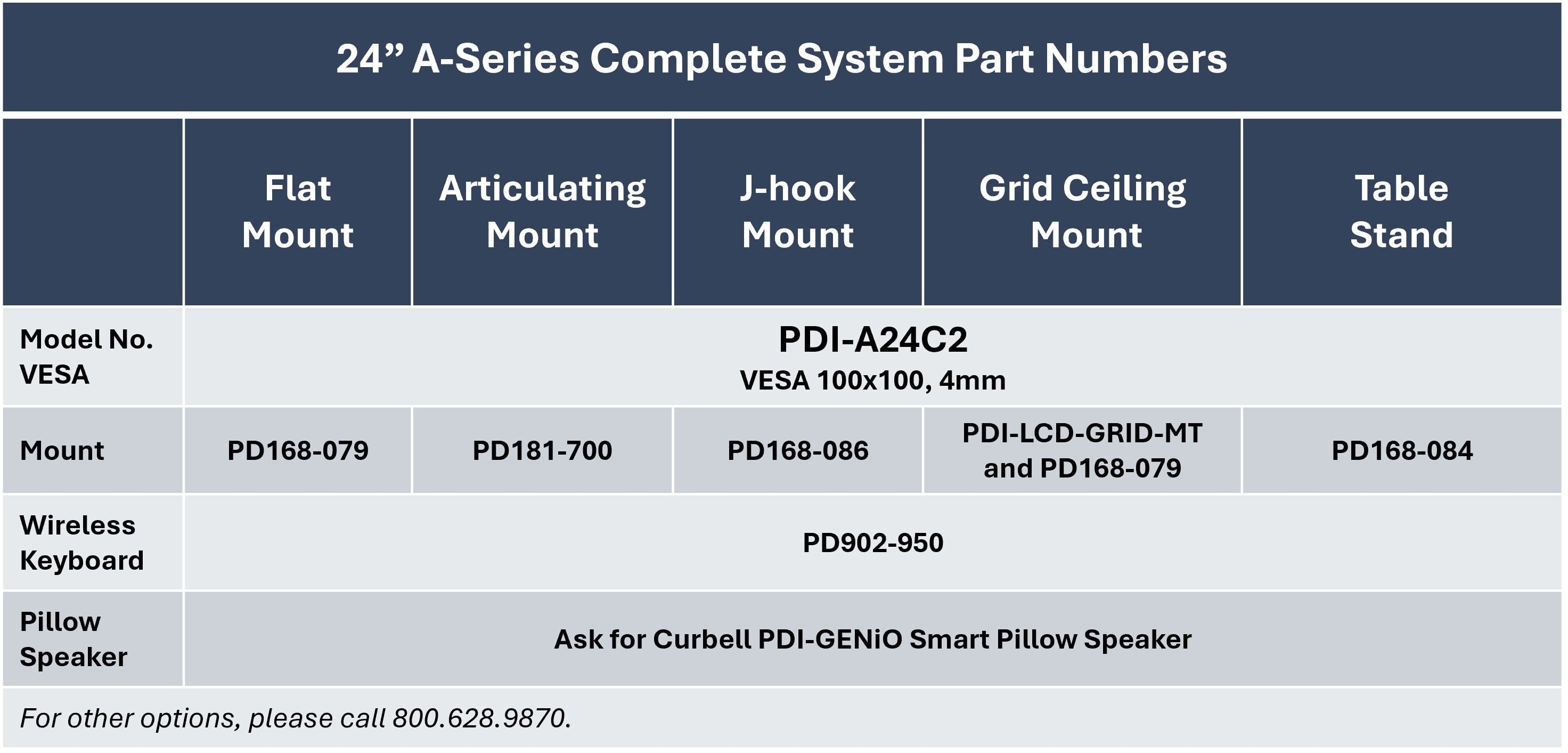

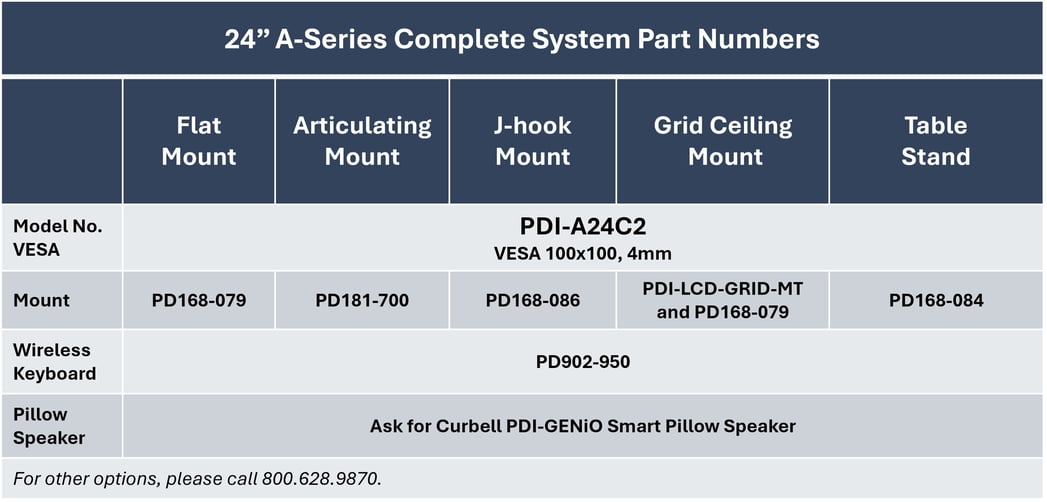

New Complete System Specifications with Power and Mounts Available
The Standard in Complete Personal Patient TVs
PDi is the trusted leader of arm-mounted patient TVs. The medTV16 arm-mounted HDTV is the latest model to satisfy and entertain patients, comfortably. Leverage existing PDi arm systems with this direct replacement to upgrade the earlier model medTV14 (P14W) and the Persona P10 televisions by PDi.
More Distraction to Satisfy Patients

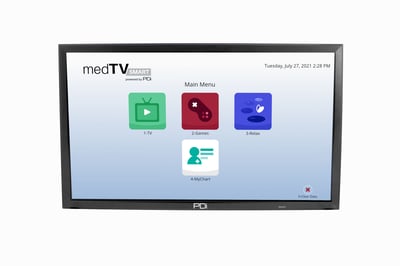

Out of the box, offer TV, games and relaxation, NO INTERNET REQUIRED. Or setup as TV only for easy use by senior patients.
Works with Pillow Speakers
Designed for healthcare. Simple to change from TV, games, or relaxation apps using easy pillow-speaker controls.

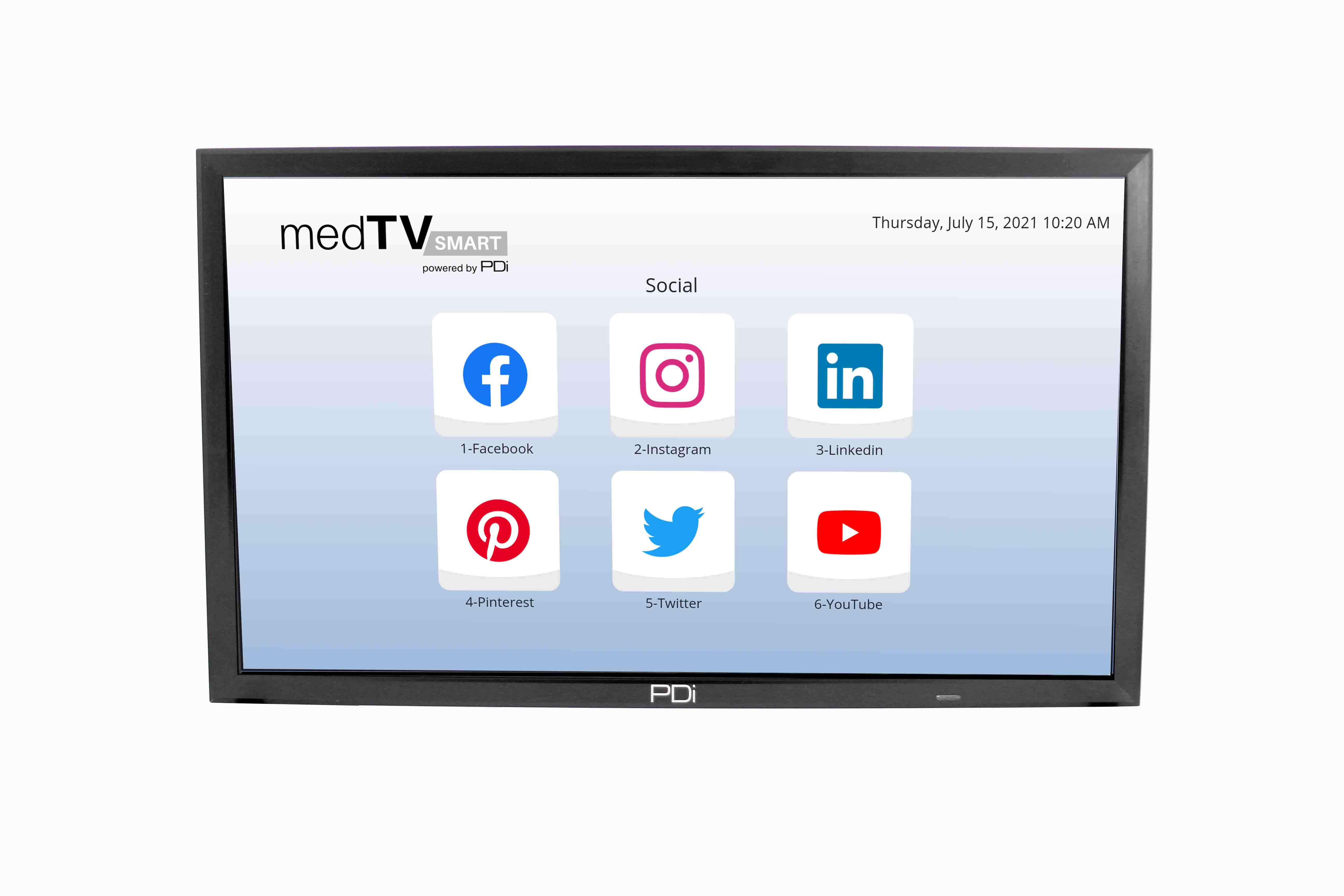

Ready to Enable Internet
Smart internet enabled apps for additional patient engagement thru the bedside TV include social links, cdc.gov and a browser.
Customize your Patient Experience
Go GENiO to add custom weblinks for your education videos, daily menus, video calls, send messages like fire alarm testing, patient surveys, Netflix, even EpicMyChart bedside and more.
Recommended Accessories
Features
Features
Universal Pillow Speaker
USB Clone Programmable or compatible with RF-HEMiS
2 HDMI Inputs
Multi-lingual English/French/Spanish Menu and OSD
3-year warranty included or upgrade to 5-year Extended Warranty
Works with Epic MyChart Bedside TV
Specifications
Panel
| Diagonal Size | 23.6" (59.8 cm) |
|---|---|
| Display Resolution | 1920x1080 (FHD) |
| Contrast Ratio | 1200:1 |
| Luminance | |
| Backlight Life | 30,000 hours |
| Backlight Type | LED |
Input/Output
| RF Input | 1 (75ohm Unbalanced) |
|---|---|
| HDMI | 2 ports |
| ENET, CCI, MTI* | CCI/MTI/Smart Port |
| Speakers | 2x3Watt RMS |
| Front Headphone | N/A |
| Pillow Speaker | Selectable, +12VDC, +5VDC, OFF, -5VDC |
*Call to inquire about additional inputs available.
Dimensions
| Weight | 12 lbs. (5.4 kg) shipping weight |
|---|---|
| Unit Dimension - Swivel (W/H/D) | N/A |
| Unit Dimension - VESA (W/H/D) | 100x100, 4mm |
| MPEG4/MPEG2 | MPEG4/Pro:Idiom |
Support Standards
| Antenna Input | NTSC, ATSC, Qam in the Clear (Air VHF/ UHF,CATV,IRC,HRC) |
|---|---|
| Pro:Idiom | Yes |
| Dolby Audio | Yes |
Power
| Source | |
|---|---|
| Max Consumption | 40W |
| Normal Consumption | <15W |
| Energy Saver Mode Consumption | <1W |
Regulatory
| UL/cUL 60065 Annex Q | Yes |
|---|---|
| FCC Title 15, Part 47, Subpart B | - |
Set-Up Features
| Audio Volume Limiter | Yes |
|---|---|
| Internal Speaker Disable | Yes |
| Min/Max Volume Limiter | Yes |
| Start/Power-on Volume | Yes |
| USB Cloning Capable | Yes |
| TV Cloning | Yes |
|---|---|
| Firmware Updates | Yes |
| PDi Program Remote | PD108-420 |
| Patient TV/DVD Remote | PD108-427 |
| Patient TV-only Remote | PD108-421 |
| Parental Control (V-CHIP) | Yes |
| Auto Power On | Yes |
| Programmable Source Selection | Yes |
|---|---|
| Password Protected Set-up Menus | Yes |
| Channel Enable/Disable | Yes |
| Channel Aliasing/Remapping | - |
| Menu OSD | English/French/Spanish |
| Factory Reset | Yes |
Computer Features
| Operating System | Android 7.0 (Nougat) |
|---|---|
| CPU | Quad Core |
| Wifi | 802.11n |
| Wireless Audio | Yes |
| Ethernet | Yes |
| Touchscreen | N/A |
| RAM | 1GB |
| Storage | 8GB Flash |
| Camera/Microphone | N/A |
