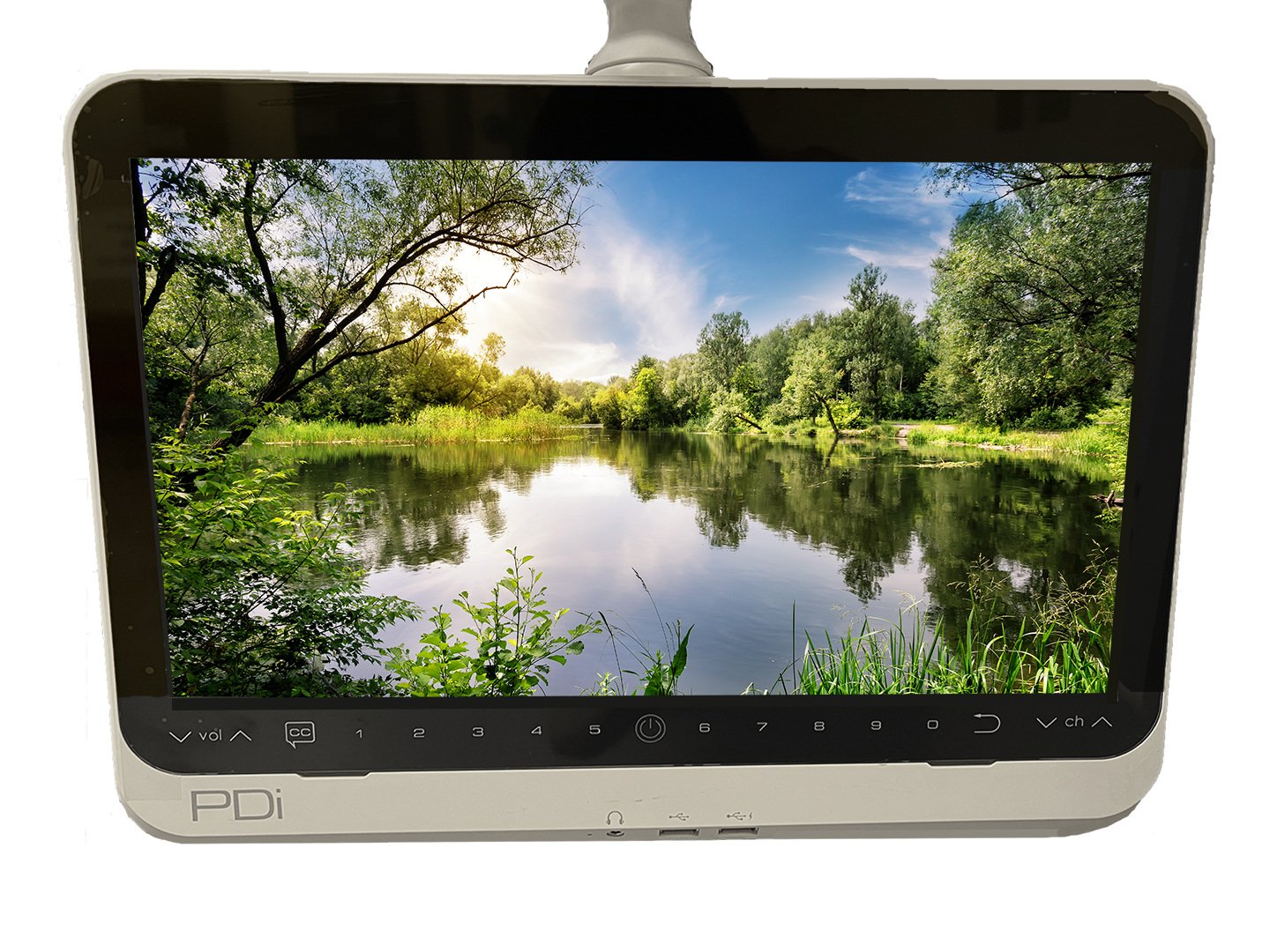

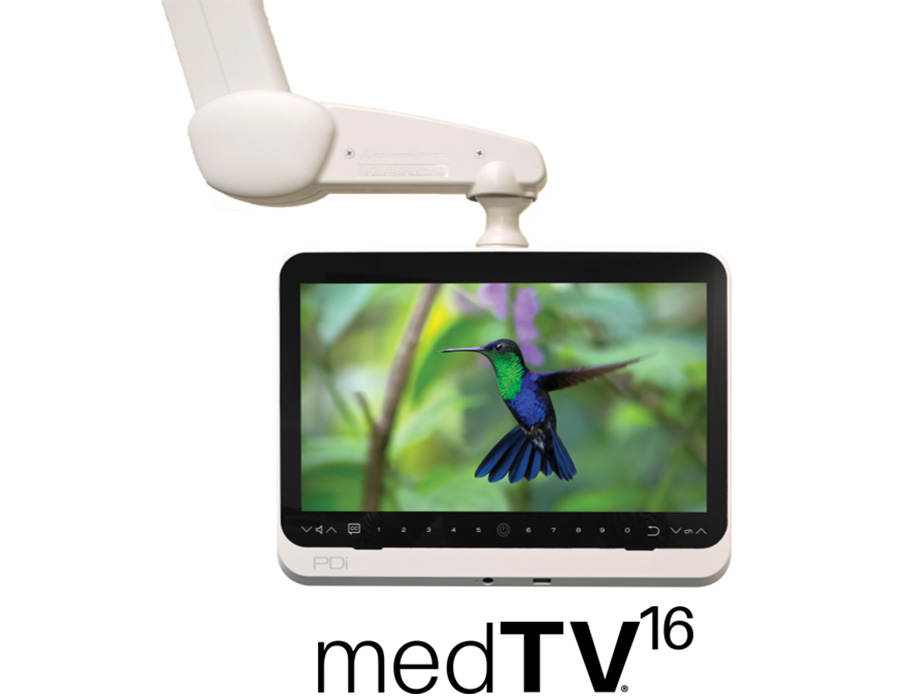

medTV16
16” Arm-mounted Healthcare-grade PDi Personal Patient HDTV
Integrated Pro:Idiom® and RF-HEMiS™ Headend TV Server Compatible

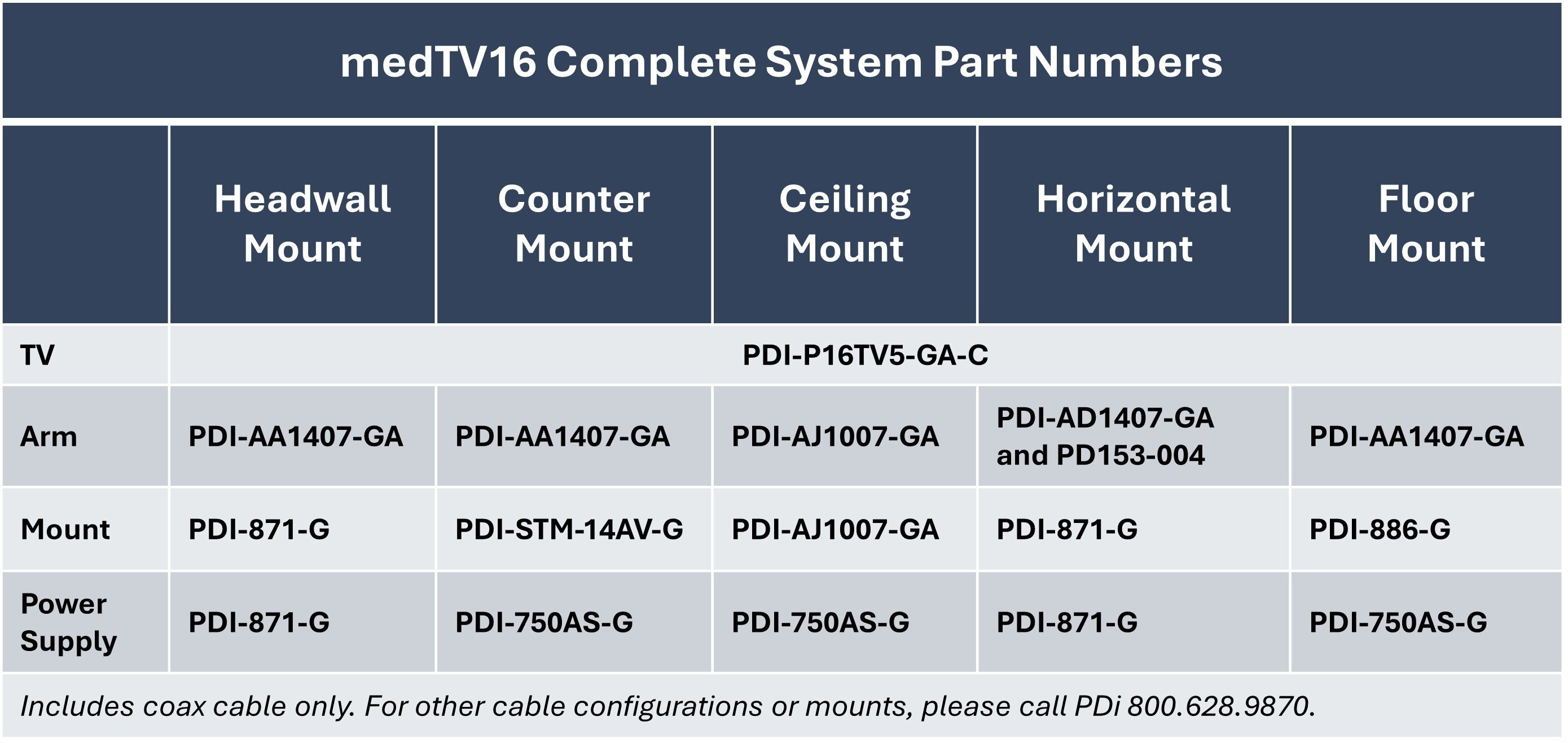

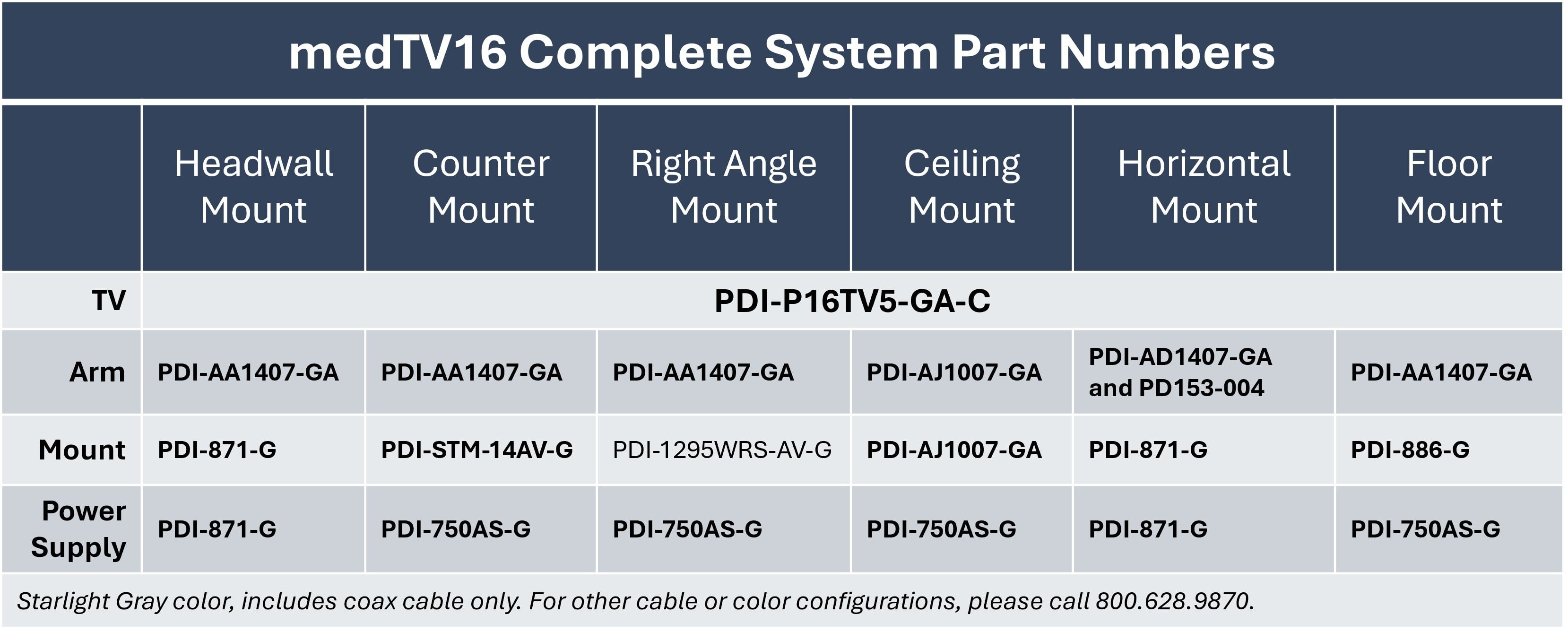

Part Numbers
PDI-P16TV-GA-C Starlight Gray, Coax Cable and Power over Coax
PDI-P16TV-GB-C Starlight Gray, CCI+Coax Cables, Power over Coax
PDI-P16TV-GG-C Starlight Gray, Pillow Speaker+Coax Cables, Power over Coax
PDI-P16TV-GB-P Starlight Gray, Coax Cable and Power over Ethernet (POE)
Call for more color and cable combinations
The Standard in Complete Personal Patient TVs.

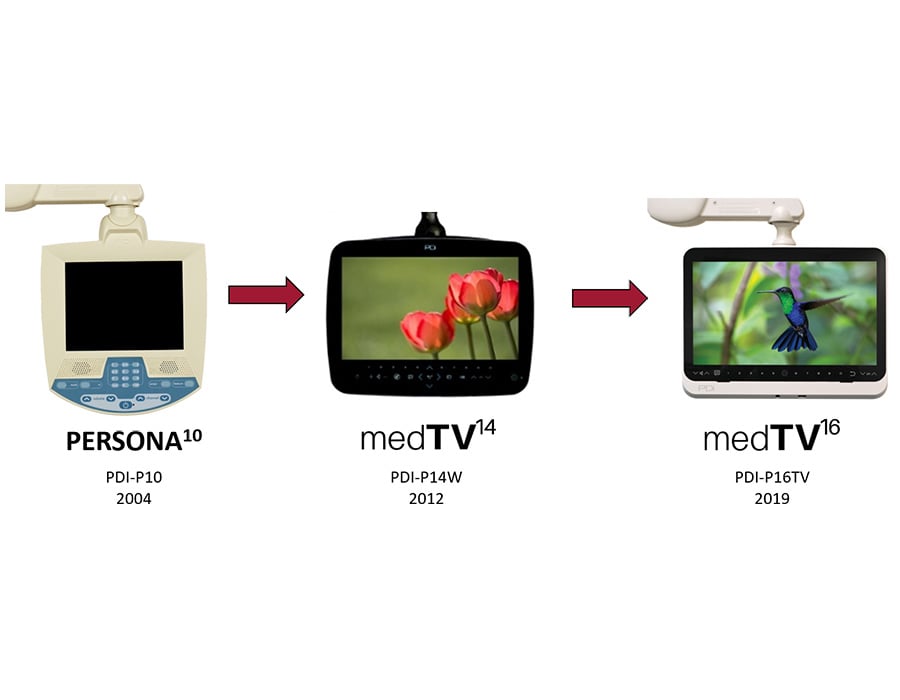

PDi is the trusted leader of arm-mounted patient TVs. The medTV16 arm-mounted HDTV is the latest model to satisfy and entertain patients, comfortably. Leverage existing PDi arm systems with this direct replacement to upgrade existing medTV14 (P14W) and the Persona P10 televisions by PDi. UL-Listed for Healthcare Use in USA and Canada
Superior Patient TV Experience
Patients enjoy a comfortable experience, equal to a 90" wall TV, and Pro:Idiom® delivers more HD channels. Patients and staff both appreciate the front-facing speakers and headphone jacks.
Less Risk, Built for Patient Safety
medTV is UL/cUL-Listed and designed for infection control. The full glass front and antimicrobial plastics are durable for rigorous hospital cleaning and help limit Hospital-acquired Conditions (HACs).
Affordable Patient Comfort
Backwards compatible to fit a variety of PDi arm systems designed to satisfy patients comfortably. These securely mounted TV displays reduce neck, back, and eye strain.
Hassle-Free TV Management
Centrally manage TVs with the PDi RF-HEMiS Head-end TV Management Server or easy USB cloning. TV set-up menus are password protected and our PDi ProServices team is happy to help navigate the process.
Features
-
Bleach-cleanable with up to 5% solution. Download cleaning instructions here.
-
UL/cUL Listed for healthcare use in US/CANADA
-
Low voltage, widescreen HDTV available Powered over Coax or POE
-
Large, direct entry channel buttons allow patients to access their favorite channels with ease
-
Front facing speakers and headphone jack minimize noise
-
Extended panel life, designed to last more than 7 years when powered on 18+ hours per day
-
RF-HEMiS Head-end TV Management Server or Easy USB cloning makes TV set-up and updates quick and simple
-
Password protected set-up menus prevent patients from altering settings with IR remotes or remote control phone apps
-
Channel aliasing and remapping allows facility staff to customize and simplify channel line-ups
-
Compatible with 7lb capacity PDi swing arms or available as Rear VESA mount (75 x 75mm)
-
Standard cabinet color is starlight gray. Ask for part numbers to order in cream color.
-
3-year warranty included or upgrade to 5-yr Extended Warranty
Specifications
| PANEL | |
| Diagonal Size | 15.6” (39.6 cm) |
| Display Resolution | 1920 x 1080 |
| Contrast Ratio | 800:1 |
| Luminance | 250 nits |
| Backlight Life | 50,000 hours |
| Backlight Type | LED |
| INPUT/OUTPUT | |
| RF Input | 1 (75ohm Unbalanced) |
| HDMI | 1, Optional |
| ENET, CCI, MTI (call to inquire about additional inputs available) | Optional |
| Speakers | 2x1.7-Watt RMS, Patient-facing |
| Front Headphone | Yes, 1/8” jack |
| Pillow Speaker | Optional |
| REGULATORY | |
| UL/cUL 60065 Annex Q | Yes |
| FCC Title 15, Part 47, Subpart B | Yes |
| SUPPORT STANDARDS | |
| Antenna Input | NTSC, ATSC, Qam in the Clear (Air VHF/UHF, CATV, IRC, HRC) |
| MPEG-4 & MPEG-2 | Yes |
| Pro:Idiom | Yes |
| Dolby Audio | Yes |
| SET-UP FEATURES | |
| Audio Volume Limiter | Yes |
| Internal Speaker Disable | Yes |
| Min/Max Volume Limiter | Yes |
| Start/ Power-on Volume | Yes |
| USB Cloning Capable | Yes |
| TV Cloning | Yes |
| Firmware Updates | Yes |
| PDi Program Remote Compatible | PD108-420 |
| Parental Control (V-CHIP) | Yes |
| Auto Power On | Yes |
| Programmable Source Selection | Yes |
| Password Protected Set-up Menus | Yes |
| Channel Enable/Disable | Yes |
| Channel Aliasing/Remapping | Yes |
| Menu OSD | English/French/Spanish |
| Factory Reset | Yes |
| POWER | |
| Source | Power over Coax or POE. UL tested the Microsemi midspan PoE 6-Port 72W Gig Midspan Mgm (PD-9506G/ACDC/M). |
| Max Consumption | 25W |
| Normal Consumption | 8W |
| Energy Saver Mode Consumption | 2W |
| DIMENSIONS | |
| Weight | 7lbs. (3.2 kg) |

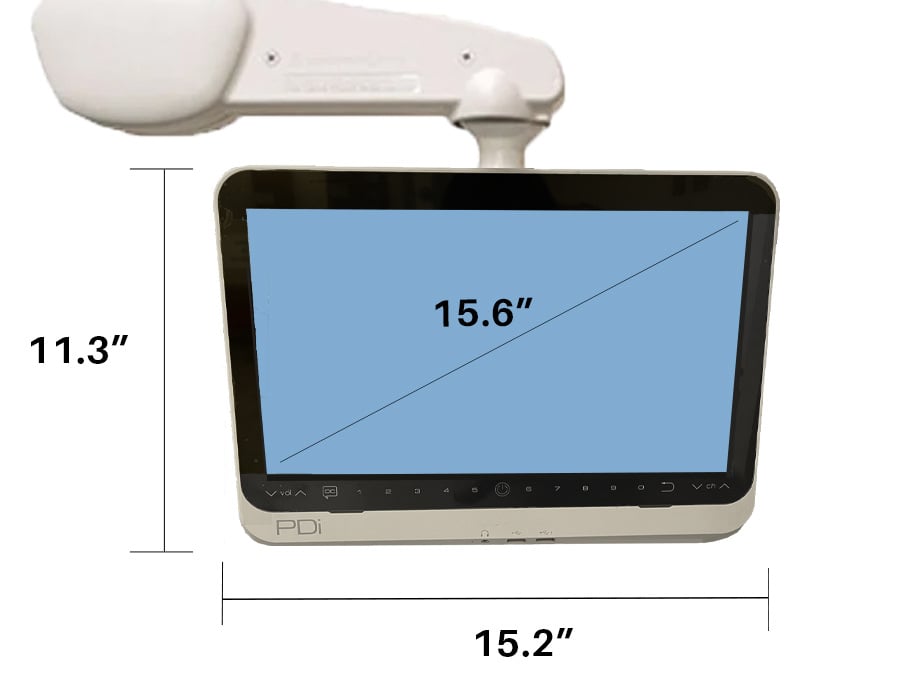

| Unit Dimension - Swivel (W/H/D) | 15.2 x 14.8 x 2.5 (in) |
| Unit Dimension - VESA (W/ H/D) | 15.2 x 11.3 x 2.5 (in) |
Display
1920 x 1080 Resolution
LED Backlight
Lamp life up to 50,000 Hours
TV Features
Pro:IdiomⓇ
MPEG4/MPEG2
USB or RF-HEMiS Clone for Programmable TV settings
16:9, 14:9, 4:3, Panoramic 16:9 Aspect Ratio
TV Source Guide Menu
Audio & Video
Speakers: 2, 1.7Watt RMS
1/8” stereo headphone jack
