Products / Discontinued medTV19, View PDi medTAB19

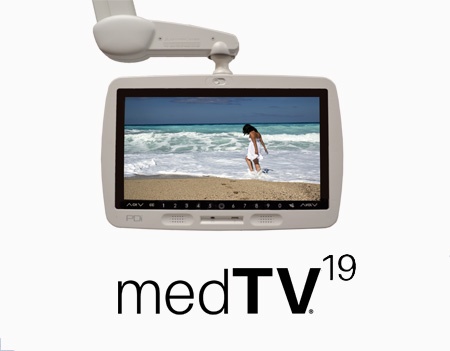

The medTV19 by PDi Communication Systems, Inc, display on a mounting arm with the medTV19 logo.
A nurse holding a remote and showing a patient in a hospital bed the content on a medTV19 by PDi, mounted to the wall with a PDi arm.

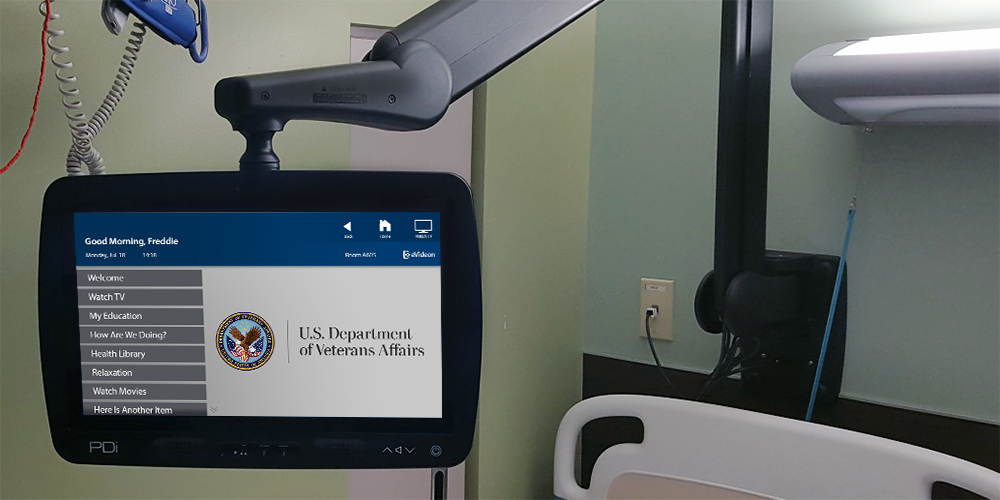

A medTV19 by PDi next to a patient bed at a Veterans Hospital displaying a welcome screen, mounted to the wall with a PDi arm.

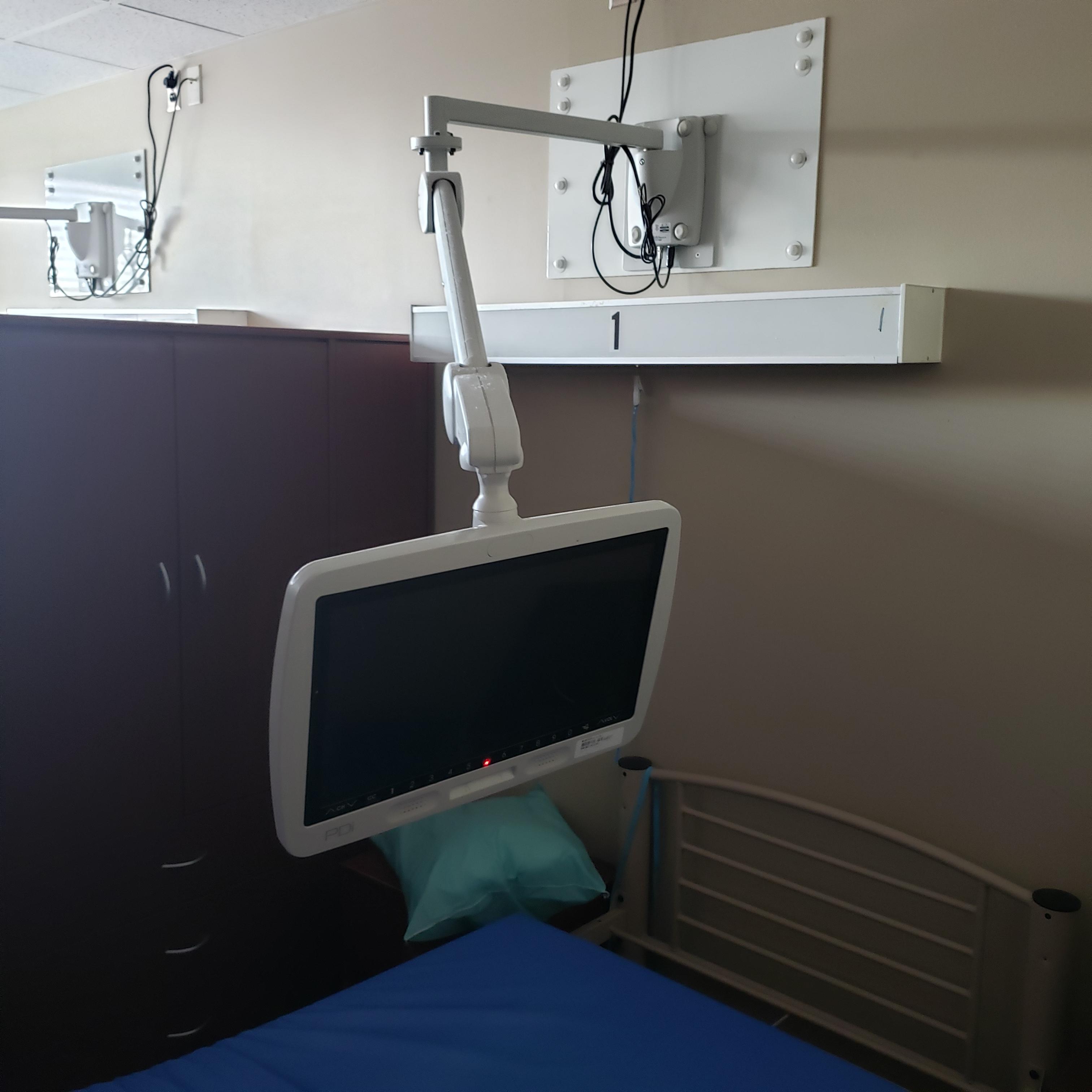

A medTV19 by PDi next to a patient bed at a Veterans Hospital, mounted to the wall with a PDi horizontal wall arm mount.

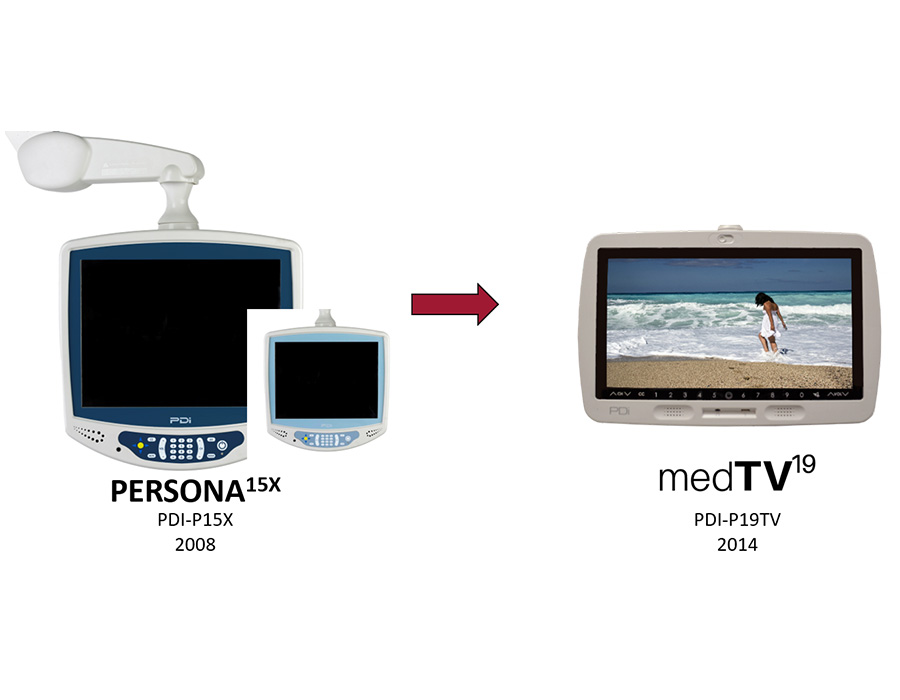

Image of the evolution of the medTV19 from its older version the PERSONA15x
❯

Discontinued medTV19, View PDi medTAB19

19” Arm-mounted Healthcare-grade PDi Personal Patient HDTV

Integrated Pro:Idiom® and RF-HEMiS™ Headend TV Server Compatible

Request a Quote Download Overview Sheet

Need installation help? Our ProServices team is here for you.

Part Numbers

PDi-P19TV

Click Here to See the PDi medTAB19 Touch

https://www.pdiarm.com/products/medtab19



Designed to Satisfy Patients, Comfortably.

Big, bold and beautiful, medTV19 is the largest arm-mounted TV in the industry.  Patients appreciate the large numeric keypad which is easy for patients to see and touch to change channels and volume. medTV19 (PDI-P19TV) is also a direct replacement to upgrade existing PDi Persona P15X sets while keeping your existing arms and power supplies.

UL-Listed for healthcare use in USA and Canada

Superior Patient TV Experience

Patients enjoy a comfortable experience, equal to a 90" wall TV, and Pro:Idiom® delivers more HD channels. Patients and staff both appreciate the front-facing speakers and headphone jacks.

Less Risk, Built for Patient Safety

medTV is UL/cUL-Listed and designed for infection control. The full glass front and antimicrobial plastics are durable for rigorous hospital cleaning and help limit Hospital-acquired Conditions (HACs).

Affordable Patient Comfort

Backwards compatible to fit a variety of PDi arm systems designed to satisfy patients comfortably. These securely mounted TV displays reduce neck, back, and eye strain.

Hassle-Free TV Management

Centrally manage TVs with the PDi RF-HEMiS Head-end TV Management Server or easy USB cloning. TV set-up menus are password protected and our PDi ProServices team is happy to help navigate the process.

Recommended Accessories
1400 Series Arm
medTV Cart
Features

  • Bleach-cleanable with up to 5% solution. Download cleaning instructions here.

  • UL/cUL Listed for healthcare use in US/CANADA

  • Low voltage, widescreen HDTV, Powered over Coax

  • Large, direct entry channel buttons allow patients to access their favorite channels with ease

  • Front facing speakers and headphone jack minimize noise

  • Extended panel life, designed to last more than 7 years when powered on 18+ hours per day

  • RF-HEMiS Head-end TV Management Server or Easy USB cloning makes TV set-up and updates quick and simple

  • Password-protected set-up menus prevent patients from altering settings with IR remotes or remote-control phone apps

  • Channel aliasing and remapping allow facility staff to customize and simplify channel line-ups

  • Compatible with 13lb capacity PDi swing arms or available as Rear VESA mount (75 x 75mm)

  • The standard cabinet color is starlight gray. Ask for part numbers to order in cream color.

  • 3-year warranty included or upgrade to 5-yr Extended Warranty

Specifications
PANEL
Diagonal Size  18.5'' (47cm)
Display Resolution 1366 x 768
Contrast Ratio  1000:1
Viewing Angle  170° (H) / 160° (V)
Luminance  300 nits
Backlight Life  50,000 hours
Backlight Type LED



INPUT/OUTPUT
RF Input (TV) 1 (75ohm Unbalanced)
HDMI  2, Optional
CCI, MTI, Composite
(call to inquire about
additional inputs available) 		 Optional
Universal Pillow Speaker Optional
Speakers  2x2-Watt RMS
Front Headphone  Yes, 1/8” jack



REGULATORY
UL/cUL 60065 Annex Q Yes
FCC Title 15, Part 47, Subpart B  Yes
RoHS  Yes



SUPPORT STANDARDS
Antenna Input  NTSC, ATSC, Qam in the Clear (Air VHF/ UHF,CATV,IRC,HRC)
Dolby Digital Yes
MPEG-4 & MPEG-2  Yes
Pro: Idiom®  Yes



SET-UP FEATURES
Audio Volume Limiter (AVL) Yes
Internal Speaker Disable Yes
Min/Max Volume Limiter  Yes
Start/Power-on Volume Yes
USB Cloning Capable
- TV Cloning
- Firmware Updates		 Yes
PDi Program Remote Compatible PD108-420
Parental Control (V-CHIP)  Yes
Auto Power On Yes
Programmable Source Selection  Yes
Password Protected Set Up Menus Yes
Channel Enable/Disable  Yes
Channel Aiiasing/Remapping  Yes
Menu OSD English/French/ Spanish
Factory Reset Yes



POWER
Source  Power over Coax
Max Consumption  34W
Standby Consumption - Normal 9.8W
Standby Consumption - Low 1.4W



DIMENSIONS
Weight 12 lbs. (5.9 kg)
Unit Dimension - Swivel  20” x 17” x 2.5”
(W/H/D) 508 x 432 x 64 (mm)
Unit Dimension - VESA  20” x 13.75” x 2.5”
(W/H/D) 508 x 349 x 64 (mm)
