Products / 68" Reach Arm

Product image of the 68
❯

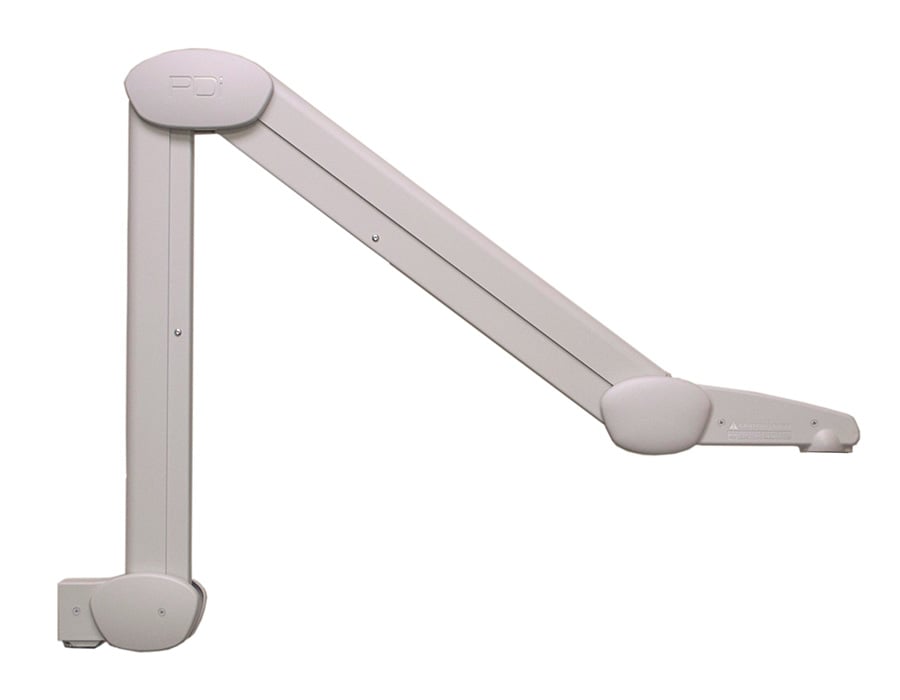

68" Reach Arm

1400 Series Support Arms for Personal Patient Entertainment Devices

Options to support 4 Lb. to 13 Lb. devices

Request a Quote Download Overview Sheet

Need installation help? Our ProServices team is here for you.

Part Numbers

PDI-AA1407-GA gray, coax, supports 7lb medTV displays by PDi, 14" and 16" devices

PDI-AA1408-CB cream, coax+Cat6, supports 8lb display devices not built by PDi

PDI-AA1413-GA gray, coax, supports 13lb PDi medTV 22" or 19" displays

For medTAB-compatible arms, call for other cable or color options.

Hassle-free Cable Management.

Transform the patient room and improve the experience by creating an interactive environment centered around the patient. Select the 1400 Series Arm that can accommodate up to 5 cables for an innovative and adaptable in-room cable management solution and a strong 68" extension that holds a PDi arm display for the patient.

UL-Listed for Healthcare Use in USA & Canada

Reduce Back, Neck and Eye Strain

The PDi arm system allows the patient to easily lift, lower, tilt, swing, or rotate their TV display with just a light touch to provide the most comfortable viewing angle.

Transform the Patient Experience

Create an interactive environment centered around the patient. A personal arm-mounted PDi system brings comfort, entertainment, and connectivity to the patient space.

Theft-resistance for Patient Displays

Your technology investment is secure. A PDi mount deters theft and eliminates the risk of a device being dropped and damaged.

A Clean, Cable-free Patient Space

Power cords, ethernet cables, coax and more are out-of-sight within the arm to safely deliver continuous power and connection so the patient won’t experience interruptions to TV.

Features
  • Removable Wire Shields along Top of Arm Sections
  • UL Listed for Healthcare Use in USA & Canada
  • Nitrogen Gas Cylinder Design
  • Anti-Recoil and Swivel Safety Features
  • Easy to Clean
  • Antimicrobial Powder Coatings
  • Rust Resistant
  • Standard 3 Year Warranty
  • Available in Starlight Gray, Cream, and Black
Specifications

Specifications

1400 Series
Product Includes: Pneumatic nitrogen gas cylinder support
Weight Capacity: 13 lbs/5.9 kg
Lift: 24.5”
Lower: 24.3”
Display Tilt: +15° / -15°
Display Pan: 270°
Arm Rotation: 180°
Max Extension: 67.8”
Base Weight* 16.6 lbs / 7.53 kg
*Final weight is dependent on cabling, customization and accessories
Additional Resources
1400 Arm Specs
