medTAB19
19" Touchscreen Smart Patient TV
Customize Your Patient Experience with GENiO™ Cloud Management
Part Numbers
medTAB19D1-GB2-C, Power over Coax, Includes 5MP Camera/Mic, GENiO Sold Separately
Made to Engage Your Patients, Your Way.
Create a more comfortable and interactive, digital environment centered around your patients. Out-of-the-box offer patients more than just simple TV. medTAB touchscreens include expanded entertainment with built-in TV, games, and relaxation, NO internet required. Customize the experience with the affordable GENiO cloud-based platform by PDi.
Your Content Matters
Provides creative ways for you to connect with patients on their bedside TV. Keep patients informed, educated, relaxed and satisfied, your way.
Empower Patients with Technology
Allow patients some control to help themselves. Provide information and self-service such as video calls or meal ordering.
Provide Efficient Patient Education
Improve workflows and consistently deliver patient education and information to engage patients in a meaningful way.
Affordable In-room Interactive TV
Saves time and money. Cloud-based. No ADT integration or on-site concierge staff. Save time with built-in camera/mic and keyboard, no clunky external devices to manage.
Features
-
medTAB arm-mounted patient displays reduce neck, back and eye strain. PDi builds the complete, arm-mounted touchscreen patient TV system with secure PDi arms, arm mounts, and low-voltage power supplies.
-
Bleach cleanable with up to 5% solution. Download cleaning instructions here.
-
UL/cUL Listed - Built to UL healthcare-grade, low-voltage standards for use in USA and Canada
-
All-in-One Android™ based Smart patient TV includes optional access to GENiO cloud-based remote device management software to customize your patient experience.
-

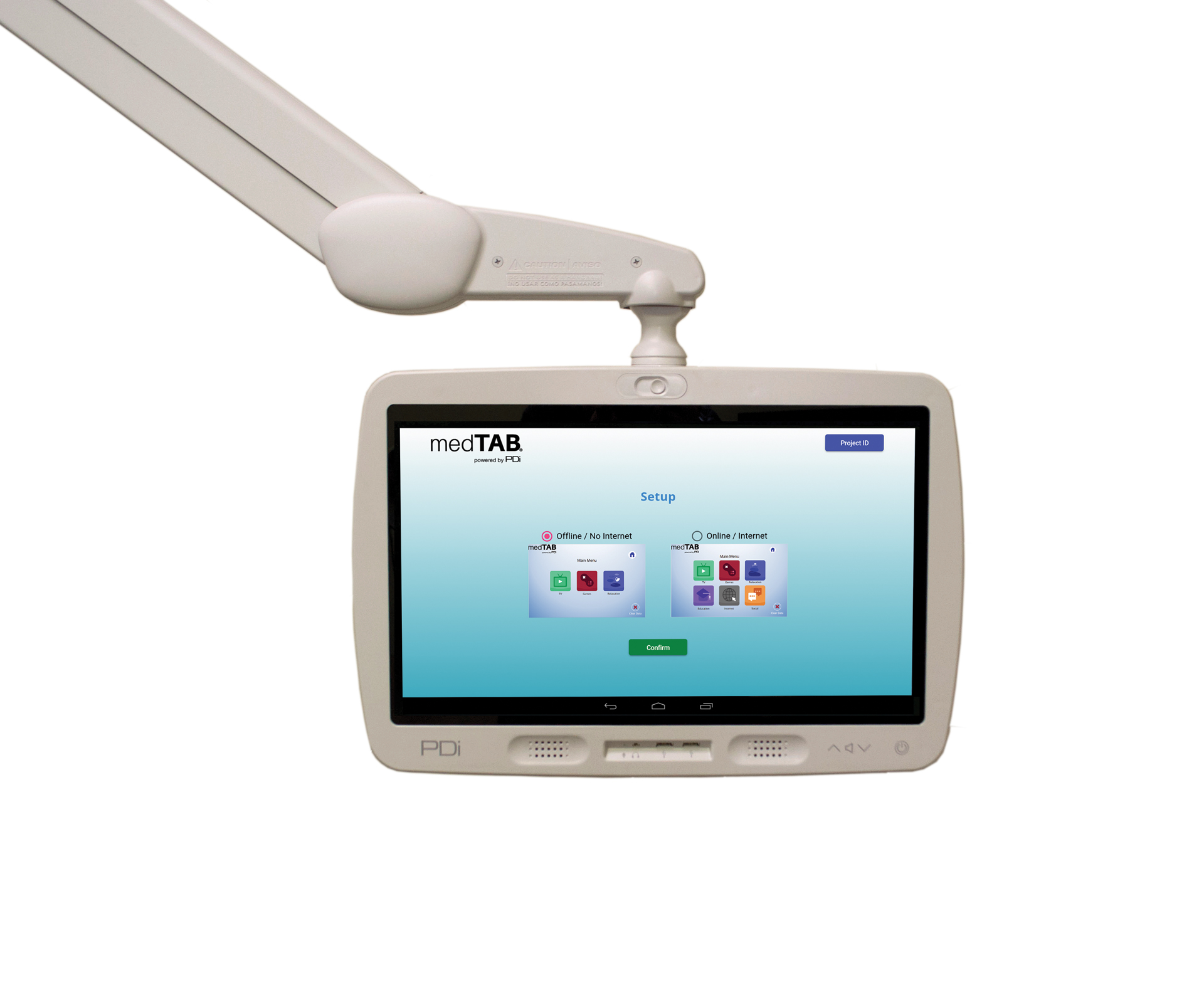

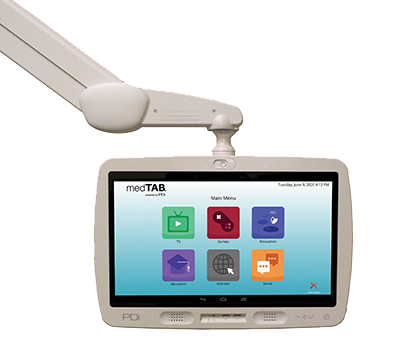

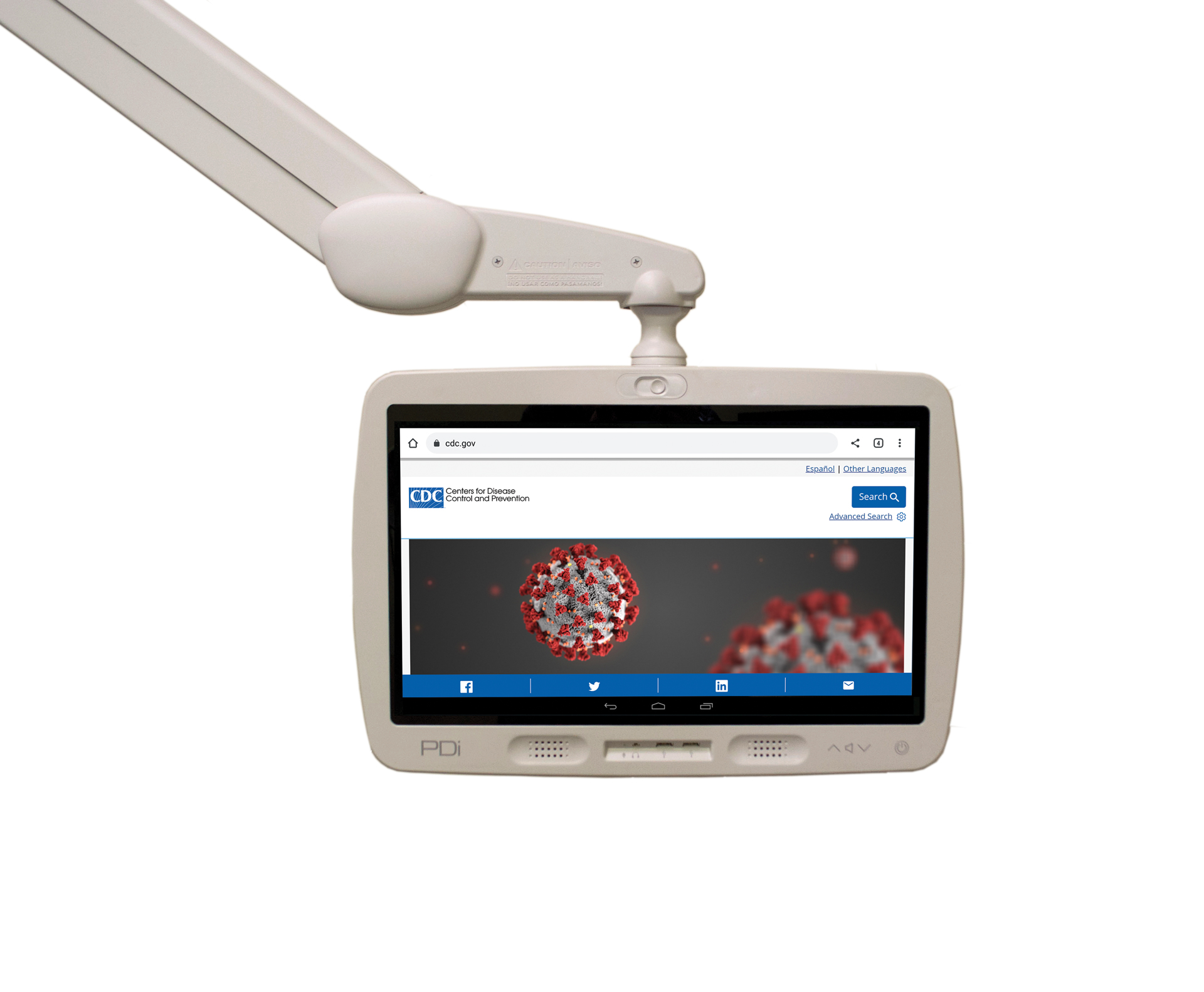

Setup choices out-of-the-box include 3-icon image for TV, games and relaxation without internet access or the 6-icon image for full internet access, now including cdc.gov weblink for patient education.
-
WIFI and Ethernet Cable included (Note: remember to specify cables in PDi arm part numbers too!)
-
Integrated 5MP Camera/Mic is optional on this model.
-
No IR Receiver
-
Optional connections include CCI, 2xHDMI
-
Automatically wipes user data for patient privacy.
-
Easy to clean glass screen and antimicrobial cabinet designed for infection control
-
LED lighted PCAP multi-touch touchscreen
-
Low voltage set, continuously powered over coax
-
Panel life designed to last more than 7 years when powered on 18+hrs/day
-
Compatible with PDi arms and arm mounts or available as rear VESA mount 75x75mm or 100x100
-
3-year warranty included or upgrade to 5-year Extended Warranty
Specifications
Panel
| Diagonal Size | 18.5" (47 cm) |
|---|---|
| Display Resolution | 1366x768 |
| Contrast Ratio | 1000:1 |
| Luminance | 1,000 nits |
| Backlight Life | 50,000 hours |
| Backlight Type | LED |
Input/Output
| RF Input | 1 (75ohm Unbalanced) |
|---|---|
| HDMI | Optional |
| ENET, CCI, MTI* | Optional |
| Speakers | 2x1.7Watt RMS |
| Front Headphone | Yes, 1/8" jack |
| Pillow Speaker | No |
*Call to inquire about additional inputs available.
Dimensions
| Weight | 13 lbs. (5.9 kg) |
|---|---|
| Unit Dimension - Swivel (W/H/D) | 20 x 17 x 2.5 (in) |
| Unit Dimension - VESA (W/H/D) | 20 x 13.75 x 2.5 (in) |
| MPEG4/MPEG2 |
Support Standards
| Antenna Input | NTSC, ATSC, Qam in the Clear (Air VHF/ UHF,CATV,IRC,HRC) |
|---|---|
| Pro:Idiom | Yes |
| Dolby Audio | Yes |
Power
| Source | |
|---|---|
| Max Consumption | 55W |
| Normal Consumption | |
| Energy Saver Mode Consumption |
Regulatory
| UL/cUL 60065 Annex Q | Yes |
|---|---|
| FCC Title 15, Part 47, Subpart B | - |
Set-Up Features
| Audio Volume Limiter | Yes |
|---|---|
| Internal Speaker Disable | Yes |
| Min/Max Volume Limiter | Yes |
| Start/Power-on Volume | Yes |
| USB Cloning Capable | Yes |
| TV Cloning | Yes |
|---|---|
| Firmware Updates | Yes |
| PDi Program Remote | PD108-420 |
| Patient TV/DVD Remote | N/A |
| Patient TV-only Remote | Touch Panel |
| Parental Control (V-CHIP) | Yes |
| Auto Power On | Yes |
| Programmable Source Selection | Yes |
|---|---|
| Password Protected Set-up Menus | Yes |
| Channel Enable/Disable | Yes |
| Channel Aliasing/Remapping | Yes |
| Menu OSD | English/French/Spanish |
| Factory Reset | Yes |
Computer Features
| Operating System | Android 7.0 (Nougat) |
|---|---|
| CPU | Arm A53 Quad Core 1.5GHz |
| Wifi | 802.11 b/g/n/ac |
| Wireless Audio | Yes |
| Ethernet | Yes |
| Touchscreen | PCAP |
| RAM | 2GB |
| Storage | 16GB Flash |
| Camera/Microphone | Optional |
