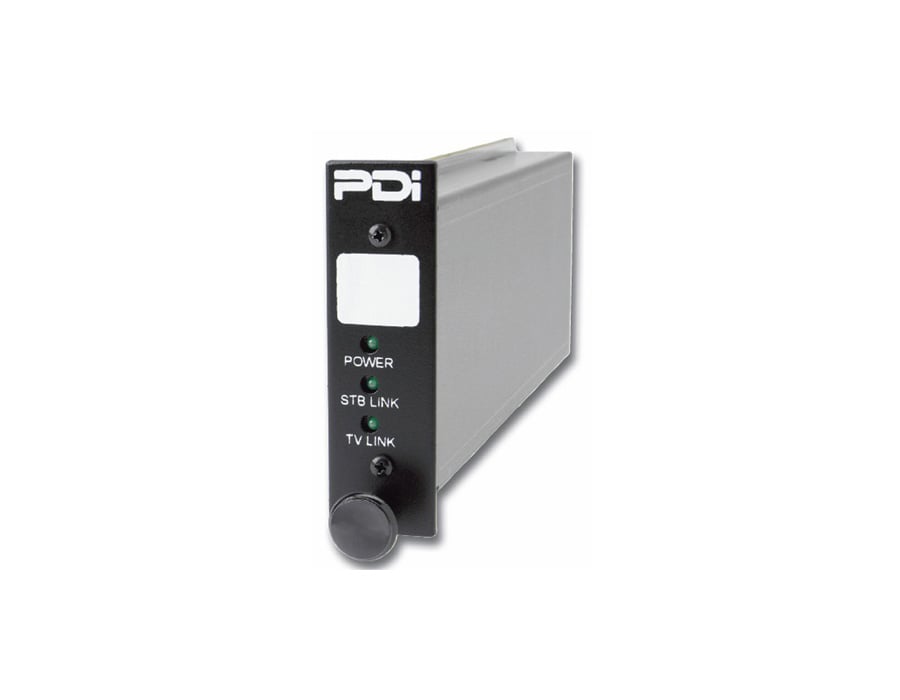

Universal Infrared Set Top Box Interface Minimod

Need installation help? Our ProServices team is here for you.

Part Numbers

Affordable solution that offers more channel access for patients!

Patients can now access every channel the facility is paying for and allows patients to easily switch between cable/satellite, in house DVD and rooftop antenna channels.

For use with all PDi televisions having a CCI port

  • Eliminates modulators, splitters and combiners in most environments
  • Eliminates need for set top box remote control and provides seamless control of satellite receivers and cable set top boxes from the television’s keypad, remote and/or pillow speaker
  • Fits all standard mini-mod racks
  • Connects to most STB via USB or IR emitter
  • Connects to TV via standard CAT5 cable and provides homeruns up to 200’
  • Status indicators allow easy trouble shooting
  • On screen custom programming
  • Powered by chassis power supply when mounted in a standard chassis. (If stand alone, a PDi power cord must be ordered separately PD106-747).
Recommended Accessories

Part Number: PD295-002

Dimensions (WxLxH): 1.03” x 7” x 3.46”

Weight: 8.4 oz

Additional Resources
PD295-002 Set Top Box Manual
