Arm Mounts

All Arm Mounts

Mounts

Reinforcing Plates

Rotational Stops

Standard AV Arm Mount

Standard AV Arm Mount

NEW!
Part Number: PDI-179-AV-G/B/C

where G=Grey, B = Black, C= Cream

  • 2 ethernet ports and 1 coax line placed at the base of the mount
  • Includes Security Bolt Covers
  • Powdercoated to match arm
  • Allows arm to rotate 180° against wall without rotational stop
  • Standard pilfer proof locking feature 5/8" base pin bushing

Slim Line Wall Mount or GCX Rail Bracket

Slim Line Wall Mount or GCX Rail Bracket
Part Number: PDI-119-B/C/G,
where B=Black, C=Cream, G=Gray

  • Allows arm to rotate 180° against wall without rotational stop
  • Powdercoated to match arm, Black/Cream/Gray
  • Available with GCX Rail Adapter - PDI-119-GCX-B/C/G

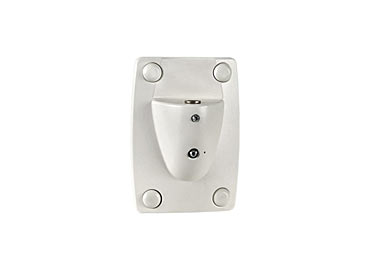

Clevis Wall Bracket for 1000 Series Arms

Clevis Wall Bracket for 1000 Series Arms
Part Number: PDI-180-B/C/G,
where B=Black, C=Cream, G=Gray

  • OSHPD Approved (OPM-0298-13)
  • Allows arm to rotate 180° against wall with rotational stop built in.
  • Powdercoated to match arm, Black/Cream/Gray.
  • Includes Security Bolt Covers

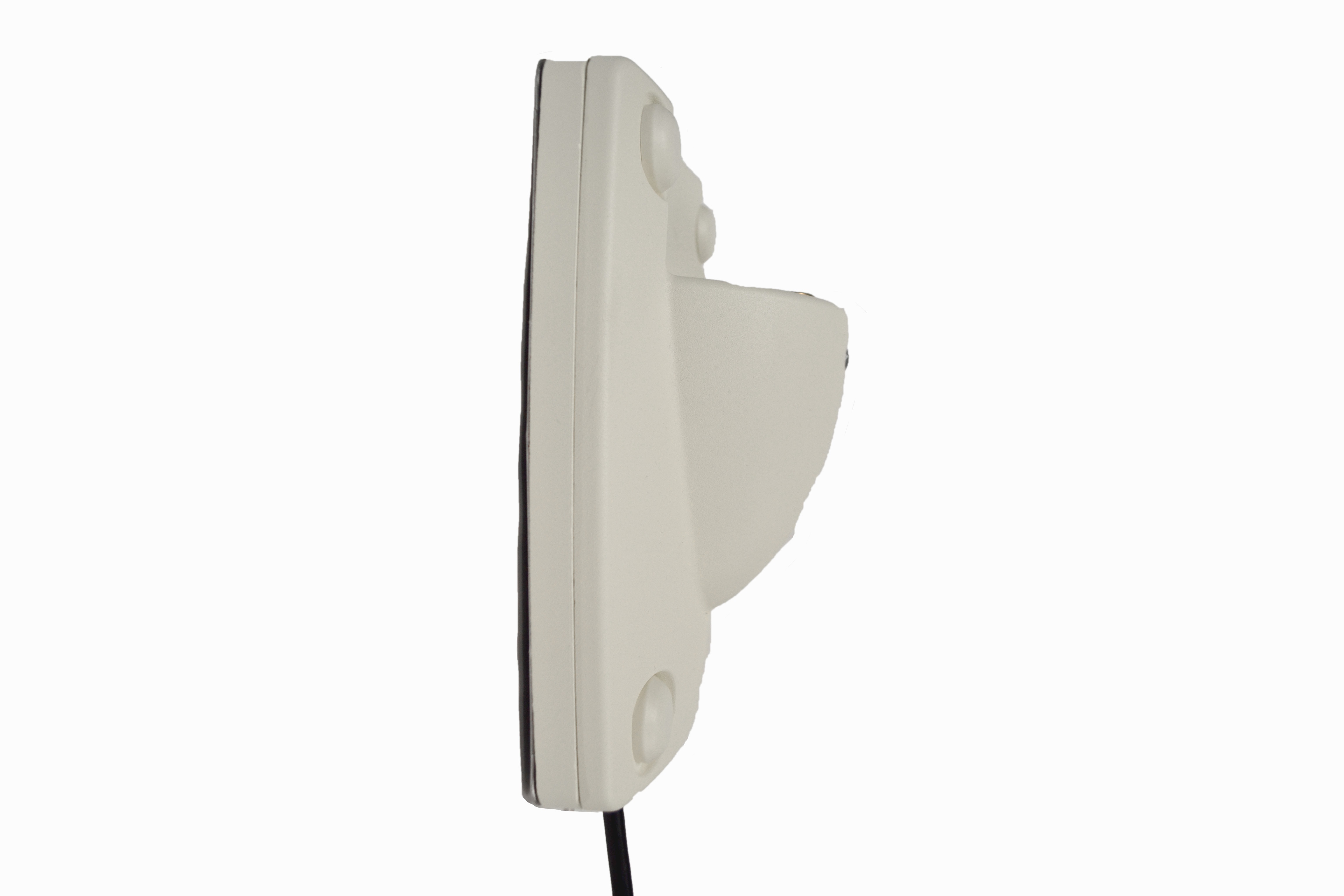

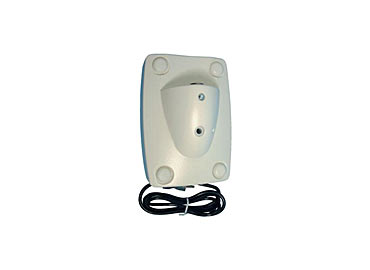

Clevis Wall Bracket with Internal Power Supply

Clevis Wall Bracket with Internal Power Supply
Part Number: PDI-781-B/C/G,
where B=Black, C=Cream, G=Gray

  • UL/ cUL Listed
  • AC Power
  • 6' cord, hospital grade plug
  • Allows arm to rotate 180° against wall with rotational stop built in.
  • Powdercoated to match arm, Black/Cream/Gray.
  • Includes Security Bolt Covers



48" Standard Floor Mount

48
Part Number: PDI-886-B/C/G,
where B=Black, C=Cream, G=Gray

  • Stands 48" tall
  • Weighs 38 lbs.
  • Powdercoated to match arm, Black/Cream/Gray.
  • Standard pilfer proof locking feature 5/8" base pin bushing





14" or 18" Counter Mounts

14
Part Number: PDI-STM-14AV-B/C/G
or PDI-STM-18AV-B/C/G
where B=Black, C=Cream, G=Gray

  • Table or countertop mounts 14" or 18” tall, designed for clearance using medTV and medTAB devices
  • Standard pilfer proof locking feature 5/8" base pin bushing
  • Powdercoated to match arm, Black/Cream/Gray.
  • 14" with 1/2" bushing, PDI-STM-A-14-B/C/G
  • Internal backing plate available PDI-STM-BP

3" Low Counter Mount

3
Product Number: PDI-LTM-B/C/G,
where B=Black, C=Cream, G=Gray

  • Works for low ceiling height applications
  • 3" tall mount for PDi arms
  • Standard limiting degree rotational stop
  • Powdercoated to match arm, Black/Cream/Gray.
  • No rotational stop option.
  • Internal backing plate available PDI-STM-BP

Right Angle Counter Mounts

Right Angle Counter Mounts
Part Number: PDI-1295WRS-B/C/G
or PDI-1295WRS-AV-B/C/G
where B=Black, C=Cream, G=Gray

  • Dimensions 6” x 6” square connector plate
  • Standard limiting degree rotational stop
  • Powdercoated to match arm, Black/Cream/Gray.
  • Both models include Rotational Stops.
  • For AV Cutout, order PDI-1295-WRS-AV-B/C/G

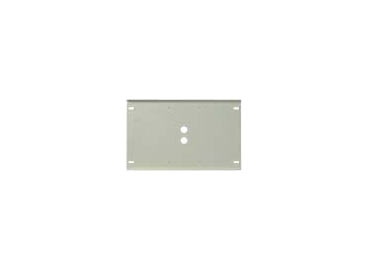

External Mounting Plate, 16" Studs

External Mounting Plate, 16
Part Number: PDI-255E-B/C/G,
where B=Black, C=Cream, G=Gray

  • OSHPD Approved (OPM-0298-13)
  • Great for renovation projects
  • Powder coated to match wall bracket
  • For 16" on center studs

External Mounting Plate, 24" Studs

External Mounting Plate, 24
Part Number: PDI-255E-24-B/C/G,
where B=Black, C=Cream, G=Gray

  • OSHPD Approved (OPM-0298-13)
  • Great for renovation projects
  • Powder coated to match wall bracket
  • For 24" on center studs

Internal Mounting Plate, 24" Studs

Internal Mounting Plate, 24
Part Number: PDI-254I-24

  • OSHPD Approved (OPM-0298-13)
  • For 24" on center studs

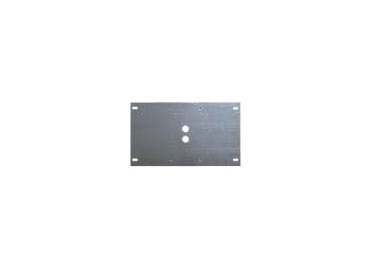

Internal Mounting Plate, 16" Studs

Internal Mounting Plate, 16

Part Number: PDI-254I

  • OSHPD Approved (OPM-0298-13)
  • Great for new construction
  • Works with 16" on center studs
  • Not powder-coated

Back-up Plate

Back-up Plate

Part Number PDI-219C


  • OSHPD Approved (OPM-0298-13)
  • 4.5" x 8" hole pattern

Back-up Plate

Back-up Plate
 Part Number: PDI-218


  • OSHPD Approved (OPM-0298-13)
  • Hole pattern 4.5" x 8"
  • Plate dimensions 6.5" x 10"

Dual Rotational Stop

Dual Rotational Stop
Part Number: PDI-244D

  • Dual Stops - for use with PDI-771CA Wall bracket power supply or old PDI-178CP Wall bracket

Dual Rotational Stop

Dual Rotational Stop
Part Number: PDI-179RS-B/C/G,
where B=Black, C=Cream, G=Gray

  • Dual Stops for use with PDi-179C Wall bracket and PDi-771B Wall bracket power supply
  • Powdercoated Black/Cream/Gray

Dual Rotational Stop

Dual Rotational Stop
Part Number: PDI-244DBF

  • Dual Stops for PDi-886C Floor mount
  • Powdercoated Black/Cream/Gray

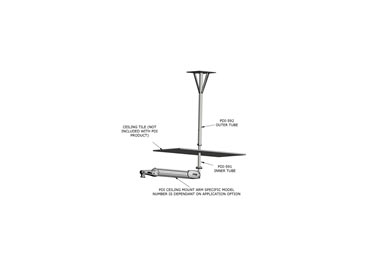

Ceiling Arm Mount

Ceiling Arm Mount
Part Number: PDI-AC407

  • Supports up to 21 lbs.
  • 28" of vertical travel
  • 2 year factory warranty on parts and labor
