Products / 17" Reach Infusion Comfort System

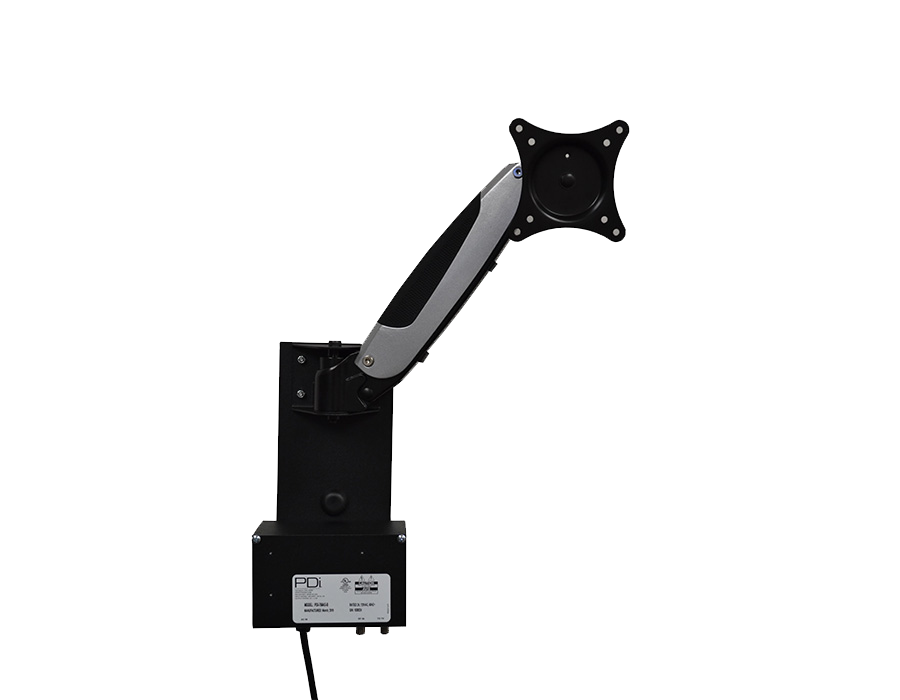

17" Reach Infusion Comfort System

SpaceSaver Arm System

For Rear-mounted PDi TVs

Need installation help? Our ProServices team is here for you.

Part Numbers

PD168-066 Includes power-supply, black, coax, supports up to 13lbs

PD168-068 No power-supply, black, coax, supports up to 13lbs

Designed for Small Infusion Spaces.

Transform the patient space and improve the patient experience by delivering easily-accessible entertainment, centered around the patient. Select the REACH17 SpaceSaver Arm System for an innovative power mount for rear-mounted 14", 16" and 19" PDi displays to entertain, engage, and satisfy patients.



Designed for Small Infusion Spaces

With single stud construction and 17" reach, this compact TV arm system delivers patient entertainment and distraction in small spaces, like infusion.

Best in Comfort for Long Treatments

Patients can easily adjust the full-motion arm to any comfortable posture during long hours of treatment.

Gives Patients a Sense of Control

Within arm's reach, this personal solution allows the patient to position their medTV or medTAB without any assistance, providing them the ultimate feeling of control.

Offers an Engaging, Safe Patient Space

The compact design frees up space for clinicians. Plus, low-voltage, continuous power is delivered without trip hazards with self-contained cables.

Features
  • Mounts to a Single Stud for Easy Installation
  • Cable Management with Shields On Underside of Arm
  • Sleek Design Saves Space and Folds Easy
  • Antimicrobial Powder Coated Mount and Power Box
  • Standard 2 Year Warranty
  • Available in Black
Specifications

Specifications

Compatible with Rear VESA 14", 16" and 19" medTV and medTAB low-voltage devices. VESA pattern 75x75 or 100x100 mm.

Max Reach: 17"
Weight Capacity*: 13 lbs/5.9 kg
Lift: 20.5” above base of power box
Lower: 1.5” beneath base of power box

Power over Coax (PDI-750AS-B)
Voltage Input 120-240 VAC
Output 24 VDC at 2.5 amps

*Final weight is dependent on cabling, customization and accessories.



Order with low-voltage 750 power supply or without:
