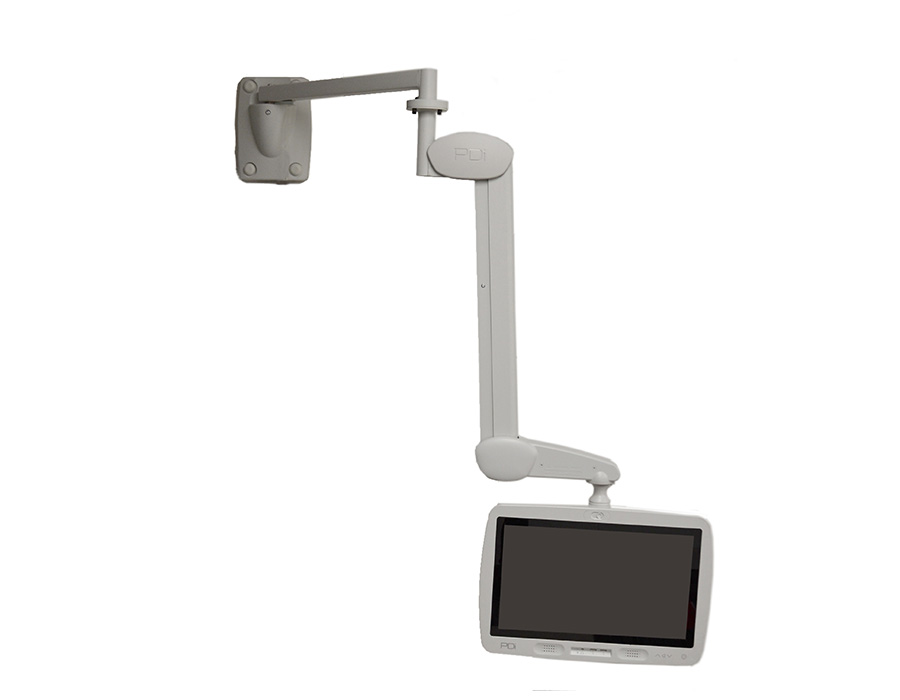

23.5" Horizontal PDi Arm Mount

Arm Extension with 31" Drop Reach

Need installation help? Our ProServices team is here for you.

Part Numbers

PD153-004-G, gray, coax, 23.5" horizontal arm section

For use with:

PDI-AD1407-GA, gray, coax, 31" drop arm section supports 7lb 14" and 16" PDi devices

PDI-AD1413-GA gray, coax, 31" drop arm section supports 13lb 19" PDi devices.

Call for other cable or color options.

Great for Renovations or Low Ceilings.

Transform the patient room and improve the experience by creating an interactive environment centered around the patient. A popular arm TV mount for above the light over the patient bed in older hospitals where existing infrastructure limits your options.


Reduce Back, Neck and Eye Strain

The PDi arm system allows the patient to easily lift, lower, tilt, swing, or rotate their TV display with just a light touch to provide the most comfortable viewing angle.

Transform the Patient Experience

Create an interactive environment centered around the patient. A personal arm-mounted PDi system brings comfort, entertainment, and connectivity to the patient space.

Theft-resistance for Patient Displays

Your technology investment is secure. A PDi mount deters theft and eliminates the risk of a device being dropped and damaged.

A Clean, Cable-free Patient Space

Power cords, ethernet cables, coax and more are out-of-sight within the arm to safely deliver continuous power and connection so the patient won’t experience interruptions to TV.

  • Nitrogen Gas Cylinder Design
  • Anti-Recoil and Swivel Safety Features
  • Easy to Clean
  • Antimicrobial Powder Coatings
  • Rust Resistant
  • Removable Wire Shields along Top of 1400 Series Arm Section
  • Standard 3 Year Warranty
  • Available in Starlight Gray or Cream


PD153-004-G, Standard 23.5" horizontal arm section with no upward arm motion.

Works with 1400 Series Arm section (sold separately) having 31" drop reach PDI-AD1407-GA for use with 14" or 16" displays or PDI-AD-1413-GA for use with PDi 19" displays. Ask about 1000 Series arm options.

Weight Capacity: 13 lbs/5.9 kg
Lower: 31
Display Tilt: +15° / -15° (Optional VESA Pendant for flat-time)
Display Pan: 270°
Arm Rotation: 180°
Max Extension: 23.5”

*Final weight is dependent on cabling, customization and accessories
