Products / 48" Super Reach Ceiling Arm

48" Super Reach Ceiling Arm

1000 Series Ceiling Support Arms for PDi

Includes 43" to 69" Support above Suspended Tile Ceiling

Need installation help? Our ProServices team is here for you.

Part Numbers

PDI-AJ1007-GA gray, coax, supports 7lb 14" and 16" PDi devices

PDI-AJ1013-GA gray, coax, supports 13lb 19" PDi devices.

Call for other cable or color options.

Great for High Ceilings.

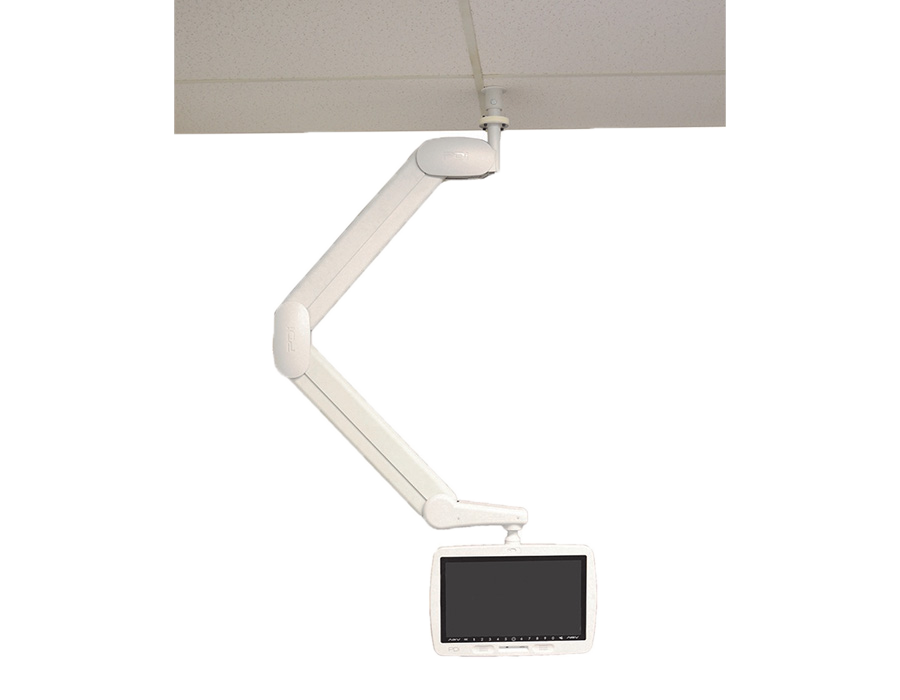

Transform the patient room and improve the experience by creating an interactive environment centered around the patient. Select the 1000 Series Super Reach Ceiling Mount Arm for a sturdy 48" extension beneath suspended ceiling tiles, and up to 69" support above the ceiling, to hold a PDi arm display for the ultimate comfort for patients.

Reduce Back, Neck and Eye Strain

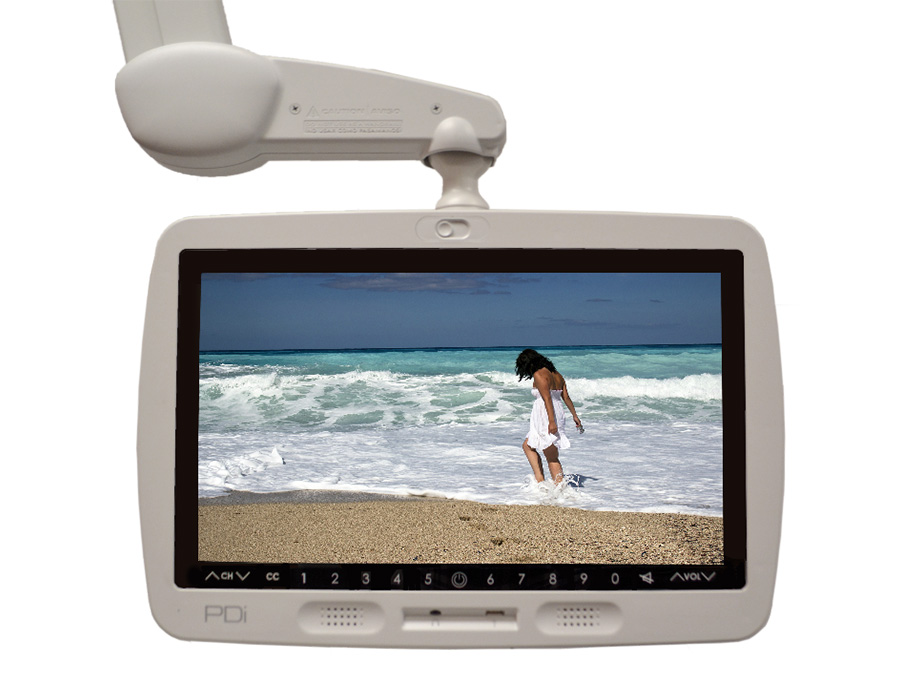

The PDi arm system allows the patient to easily lift, lower, tilt, swing, or rotate their TV display with just a light touch to provide the most comfortable viewing angle.

Transform the Patient Experience

Create an interactive environment centered around the patient. A personal arm-mounted PDi system brings comfort, entertainment, and connectivity to the patient space.

Theft-resistance for Patient Displays

Your technology investment is secure. A PDi mount deters theft and eliminates the risk of a device being dropped and damaged.

A Clean, Cable-free Patient Space

Power cords, ethernet cables, coax and more are out-of-sight within the arm to safely deliver continuous power and connection so the patient won’t experience interruptions to TV.

  • Nitrogen Gas Cylinder Design
  • Anti-Recoil and Swivel Safety Features
  • Easy to Clean
  • Antimicrobial Powder Coatings
  • Rust Resistant
  • Removable Wire Shields along Underside of Arm Sections
  • Standard 3 Year Warranty
  • Available in Starlight Gray or Cream


1000 Series, 48" Total Reach beneath the suspended ceiling tiles, and adjustable support assembly for 43" to 69" support above the ceiling tiles
Product Includes: Pneumatic nitrogen gas cylinder support arm sections, inner and outer tube assembly for above the ceiling tiles
Weight Capacity: 13 lbs/5.9 kg
Lower: 48”
Display Tilt: +15° / -15° (Optional VESA Pendant for flat-time)
Display Pan: 270°
Arm Rotation: 180°
Max Extension: 48”
Base Weight* 16.5 lbs / 7.48 kg
*Final weight is dependent on cabling, customization and accessories
