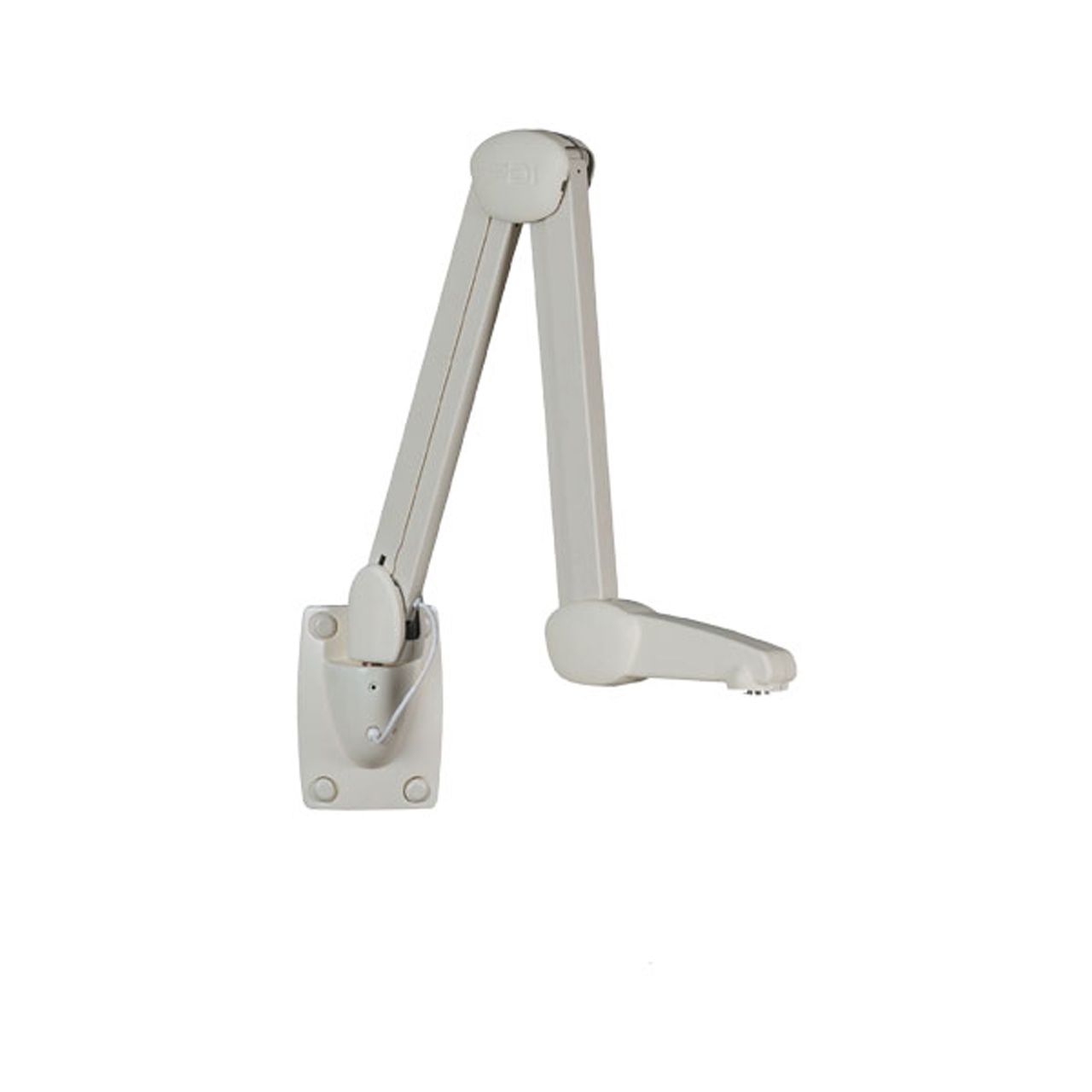

500 Series Arm

500 Series Swing Arms for Bedside Healthcare TVs and Devices

PDI-AA507-GA gray, coax, supports 7lbs
PDI-AA513-GA gray, coax, supports 13lbs
Call for other cable and color options.

Purchasing

Request A Quote Download Overview Sheet

Description

A personal approach to transform the patient experience.

Transform the patient room and improve the experience by creating an interactive environment centered around the patient. Select the 500 Series arm for a lean 58” extension that holds a PDi display for the patient to interact with.

500 Series arms are available with Coax and/or Cat6 cables only.

Benefits of PDi Swing Arms include:

Reduced back, neck and eye strain.

This personal bedside arm system allows the patient to easily adjust their viewing experience, away from glare and to where it’s most comfortable in their current position.

A broad range of motion.

With just a light touch, the spring based lift design can easily lift, swing, tilt or rotate or be placed in a compact, retracted position to free up space.

Stability and security.

A securely mounted display deters theft and eliminates the risk of a device being damaged by gravity.

Make the patient room a clean, cable free zone.

Store power cords, ethernet cables, coax lines and more within the PDi Swing Arms for continuous power and connection so the patient won’t experience interruptions.

Specifications & Features

Specifications

Product Includes: Spring-based support
Weight Capacity 13 lbs (5.9 kg)
Lift:  21”
Lower:  20”
Display Tilt:  +15° / -15°
Display Pan:  270°
Arm Rotation:  180°
Max Extension:  58”
Base Weight*  14 lbs/ 6.4 kg



*Final weight is dependant on cabling, customizations and accessories

Features

  • UL Listed
  • Rust Resistant
  • Anti-Recoil and Swivel Safety Features
  • Easy to Clean
  • Antimicrobial Powder Coatings
  • Standard 2 Year Warranty
  • Available in Starlight Gray, Cream, and Black
