Low Voltage Power Supplies for Arm-Mounted Healthcare TVs and Tablets

All Low Voltage Power Supplies

Individual

Ten-Tap

Slim Power Mount

Slim Power Mount

Part Number: PDI-871-B/C/G,
where B=Black, C=Cream, G=Gray

NEW aesthetically pleasing combo power supply and arm mount that sits only 1-inch off the wall.
  • UL/ cUL Listed
  • Voltage Input 120-240VAC
  • Output 24VDC at 2.5 amps
  • Maintains same hole spacing as 179C, 178, 771 to allow easy upgrades in the field
  • New switching power supply provides reduced standby power consumption
  • Built-in thermal protection, no fuses, no breakers
  • Allows arm to rotate 180° without rotational stop
  • Standard pilfer proof locking 5/8" base pin bushing
  • Includes Security Bolt Covers
  • AC Power, 6' cord, hospital grade plug
  • Powdercoated Starlight Gray, Black or Cream

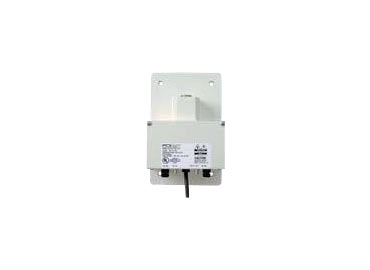

Clevis Wall Bracket with Internal Power Supply

Clevis Wall Bracket with Internal Power Supply
Part Number: PDI-781-B/C/G,
where B=Black, C=Cream, G=Gray

  • UL/ cUL Listed
  • Voltage Input 120-240VAC
  • Output 24VDC at 2.5 amps
  • Allows arm to rotate 180° against wall with rotational stop built in.
  • Includes Security Bolt Covers
  • AC Power, 6' cord, hospital grade plug
  • Powdercoated Starlight Gray, Black or Cream

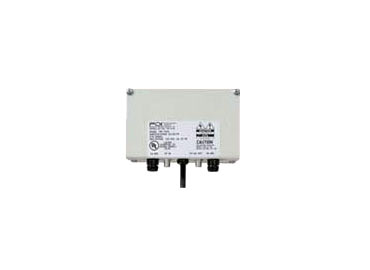

Standard External Power Supply

Standard External Power Supply
Part Number: PDI-750AS-B/C/G
where B=Black, C=Cream, G=Gray

  • UL/ cUL Listed
  • Voltage Input 120-240VAC
  • Output 24VDC at 2.5 amps
  • NEW Switching power supply provides reduced standby power consumption
  • Built-in thermal protection, no fuses, no breakers
  • AC Power, 6' cord, hospital grade plug
  • Powdercoated Starlight Gray, Cream, or Black

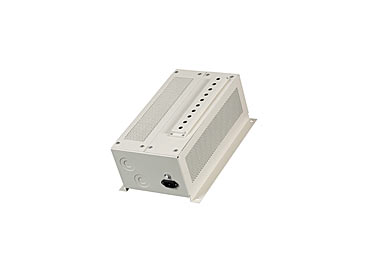

Ten-Tap Power Supply

Ten-Tap Power Supply

Part Number: PDI-772HE

A specialized power supply designed to simplify channel distribution and safely control power to 10 medTV or medTAB personal arm-mounted, healthcare grade televisions.

  • Lower utility costs by maximizing energy efficiency by 90%
  • UL/ cUL Listed
  • 1 GHZ Bandwidth Capacity
  • 1 RF input/ 10 RF/ACTV Outputs
  • Input Voltage 115VAC/60Hz
  • Selectable output 28 VAC or 32 VAC
  • No cooling fan required
  • Small cabinet size for easy install
  • 10 Foot Detachable Power Cord
  • Operation Temperature Range: 20-50 Degrees Celsius
  • Cream color only

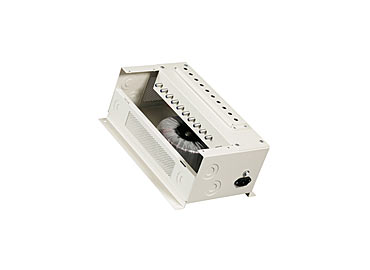

Ten-Tap Power Supply, Individual Inputs

Ten-Tap Power Supply, Individual Inputs

Part No. PDI-772HE-IND

A specialized power supply designed to simplify channel distribution and safely control power to 10 medTV or medTAB personal arm-mounted, healthcare grade televisions.

  • Lower utility costs by maximizing energy efficiency by 90%
  • No need for power passers on new installations
  • UL/ cUL Listed
  • 1 GHZ Bandwidth Capacity
  • 10 RF inputs and 10 RF/ACTV Outputs
  • Input Voltage 115VAC/60Hz
  • Selectable output for 28 VAC or 32 VAC
  • No cooling fan required
  • Small cabinet size for easy install
  • 10 Foot Detachable Power Cord
  • Operation Temperature Range: 20-50 Degrees Celsius
  • Cream color only
