Standard AV Arm Mount
Part Number: PDI-179AV-G/B/C
where G=Gray, B = Black, C= Cream
- OSHPD Approved (OPM-0516-13)
- 2 ethernet ports and 1 coax line placed at the base of the mount. Also available 5 connections PDI-179AV5-
- Includes Security Bolt Covers
- Powdercoated to match arms 1400 Series or 500 Series
- Allows arm to rotate 180° against wall without rotational stop
- Standard pilfer proof locking feature 5/8" base pin bushing
- 4" Extension available PDI-179-EXT-G/B/C.
Slim Line Wall Mount or GCX Rail Bracket
Part Number: PDI-119-B/C/G,
where B=Black, C=Cream, G=Gray
- Allows arm to rotate 180° against wall without rotational stop
- Powdercoated to match arm, Black/Cream/Gray
- Available with GCX Rail Adapter - PDI-119-GCX-B/C/G
Clevis Wall Bracket for 1000 Series Arms
LIMITED AVAILABILITY
Part Number: PDI-180-B/C/G,
where B=Black, C=Cream, G=Gray
- OSHPD Approved (OPM-0298-13)
- Allows arm to rotate 180° against
wall with rotational stop built in. - Powdercoated to match 1000 Series arm, Black/Cream/G
ray . - Includes Security Bolt Covers
Clevis Wall Bracket with Internal Power Supply
LIMITED AVAILABILITY
Part Number: PDI-781-B/C/G,
where B=Black, C=Cream, G=Gray
- UL/ cUL Listed
- AC Power
- 6' cord, hospital grade plug
- Allows arm to rotate 180° against
wall with rotational stop built in. - Powdercoated to match arm, Black/Cream/G
.ray - Includes Security Bolt Covers

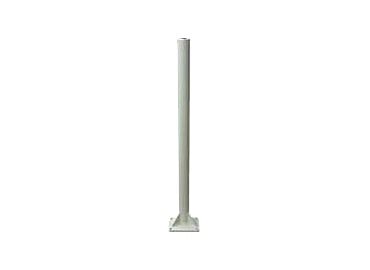

48" Standard Floor Mount
Part Number: PDI-886-B/C/G,
where B=Black, C=Cream, G=Gray
- OSHPD Approved (OPM-0516-13)
- Stands 48" tall
- Weighs 38 lbs.
- Powdercoated to match arm, Black/Cream/Gray.
- Standard pilfer proof locking feature 5/8" base pin bushing
14" or 18" Counter Mounts, having AV Audio/Video Plate Cutout
Part Number: PDI-STM-14AV-B/C/G
or PDI-STM-18AV-B/C/G
where B=Black, C=Cream, G=Gray
(AV Plate Sold Separately, PD203-103 Coax and Cat5*)
- Table or countertop mounts 14" or 18” tall, designed for clearance using medTV and medTAB devices
- Standard pilfer proof locking feature 5/8" base pin bushing
- Includes Dual Rotational Stops
- Powdercoated to match arm, Black/Cream/Gray.
- 14" with 1/2" bushing, PDI-STM-A-14-B/C/G
- Internal backing plate available PDI-STM-BP
- *Call for other AV plate options
Right Angle Counter Mounts
Part Number: PDI-1295WRS-B/C/G
or PDI-1295WRS-AV-B/C/G
where B=Black, C=Cream, G=Gray
- Dimensions 6” x 6” square connector plate
- Standard limiting degree rotational stop
- Powdercoated to match arm, Black/Cream/Gray.
- Both models include Rotational Stops.
- For AV Cutout, order PDI-1295-WRS-AV-B/C/G
3" Low Counter Mount
Product Number: PDI-LTM-B/C/G,
where B=Black, C=Cream, G=Gray
- Works for low ceiling height applications
- 3" tall mount for PDi arms
- Powdercoated to match arm, Black/Cream/Gray.
- No rotational stop option.
- Internal backing plate available PDI-STM-BP
External Mounting Plate, 16" Studs
Part Number: PDI-255E-B/C/G,
where B=Black, C=Cream, G=Gray
- OSHPD Approved (OPM-0298-13)
- Great for renovation projects
- Powder coated to match wall bracket
- For 16" on center studs
External Mounting Plate with A/V Audio/Video Plate Cutout, 16" Studs
Part Number: PDI-255EAV-B/C/G
where B=Black, C=Cream, G=Gray
(AV Plate Sold Separately PD201-103 Coax and Cat5*)
- For use with Slim Power Mount PDI-871-
- Powder coated
- For 16" on center studs
- * Call for other AV Plate options
External Mounting Plate, 24" Studs
Part Number: PDI-255E-24-B/C/G,
where B=Black, C=Cream, G=Gray
- OSHPD Approved (OPM-0298-13)
- Great for renovation projects
- Powder coated to match wall bracket
- For 24" on center studs
Internal Mounting Plate, 24" Studs
Part Number: PDI-254I-24
- OSHPD Approved (OPM-0298-13)
- For 24" on center studs
Internal Mounting Plate, 16" Studs
Part Number: PDI-254I
- OSHPD Approved (OPM-0298-13)
- Great for new construction
- Works with 16" on center studs
- Not powder-coated
Back-up Plate
Part Number PDI-219C
- OSHPD Approved (OPM-0298-13)
- 4.5" x 8" hole pattern
Back-up Plate
Part Number: PDI-218
- OSHPD Approved (OPM-0298-13)
- Hole pattern 4.5" x 8"
- Plate dimensions 6.5" x 10"
Dual Rotational Stop
Part Number: PDI-244D
- Dual Stops - for use with PDI-771CA Wall bracket power supply or old PDI-178CP Wall bracket
Dual Rotational Stop
Part Number: PDI-179RS-B/C/G,
where B=Black, C=Cream, G=Gray
- Dual Stops for use with PDI-179AV, PDi-179C Wall brackets and PDi-771B Wall bracket power supply
- Powdercoated Black/Cream/Gray
Dual Rotational Stop
Part Number: PDI-244DBF
- Dual Stops for PDi-886C Floor mount
- Powdercoated Black/Cream/Gray
Ceiling Mount Support
Part Number: PDI-CMT-SUPPORT
- Adjustable from 43" to 69" at time of install. Inner Tube is drilled for desired height
- Works with Ceiling Arm Mounts having part numbers beginning with PDI-ACxx or PDI-ADxx, and PDI-AJxx or PDI-AKxx Series arms
- 2 year factory warranty on parts and labor

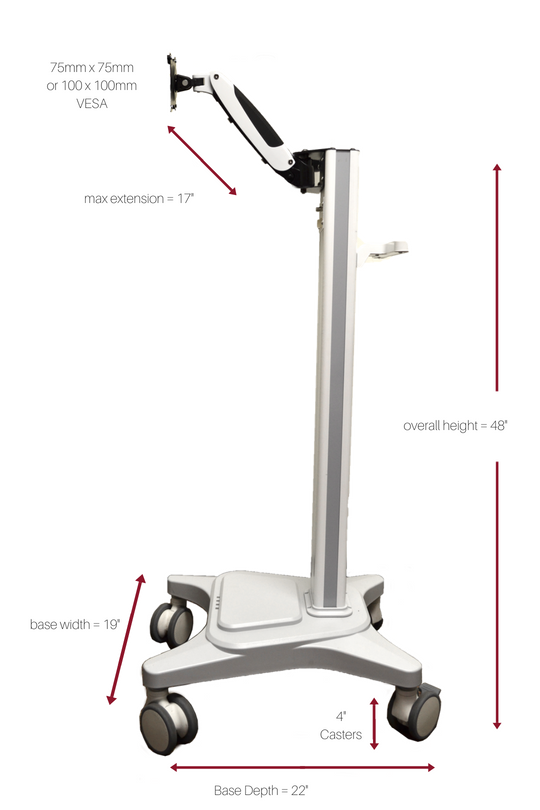

Mobile Cart
Part Number: PDI-MCP
- Built for healthcare standards, 48" Tall
- 4" Smooth gliding casters, rear locking
- Easy to move on carpet or hard floors
- Small footprint wheel base 19"x 22"
- Integrated low-voltage power and cables
- 2-year warranty
- Available in white with grey color accent
