Wall TV Brackets and Table Stands

All

Articulating Wall Mounts

Grid Ceiling Mounts

Flat Wall Brackets

Pan & Tilt Wall Brackets

Table Stands

Full Motion Tilt & Swivel TV Mount

Full Motion Tilt & Swivel TV Mount


Part Number: PD168-107
  • Fits A-Series 43" and 55" or VESA patterns 200x200, 300x300, 400x200, 400x400, 600x400
  • 90° swivel left or right
  • Tilt +10° to -15°
  • Extends 18.6in / 473mm
  • Load Capacity 77lbs / 35kg



Articulating Wall Mount Fits 24" & 32" TVs

Articulating Wall Mount Fits 24
Part Number: PD181-700
View Product
  • Stud mounting or concrete masonry mounting
  • Pre-assembled, made with anodized aluminum and powdercoated steel
  • Fit  24” A-Series Televisions and 32” A-Series Televisions without added DVD modules.
  • Fits VESA 75x75 or 100x100
  • For 100x200 VESA, order PD181-712 which includes PD181-701 with adapter plate.
  • 12deg tilt
  • Extends up to 12.6" outward
  • Load capacity 30 lbs (13.6kg)
  • Weighs 1.9 lbs.

J-Hook Fits 24" thru 55" TVs

J-Hook Fits 24

Part Number: PD168-065

View Product

  • For easy insertion and removal from PDI-179 Standard Wall Mount, having 5/8" base pin bushing
  • Supports up to 41 lbs
  • Compatible with PDi TVs or multiple VESA patterns including 100x200 or 200x200
  • Rust-free Finish

Grid Ceiling Mount

Grid Ceiling Mount

Part Number: PDI-LCD-GRID-MT

  • Designed for suspended grid mount ceiling structures and when wall space isn't available
  • Attaches to a 24" suspended ceiling tile
  • Allows you to mount footwall TVs using guy wires on this mount
  • Requires flat tv bracket mount. (order separately)
  • PDi has complete ceiling mounting system options. Ask about high-tilt option and column extensions available from 2 FT to 6 FT lengths.
  • PDi also offers Custom Engineering Services to make this solution work for special project requirements.

Grid Mount Extensions

Grid Mount Extensions

Part Number: PD240-003-Txx, xx=12, 24, 36, 48

  • Designed to extend the LCD Grid Ceiling Mount by 1, 2, 3, or 4 ft
  • Use only one extension per assembly
  • Requires coupler kit PD168-014

Flat Wall Mount Fits 55B TVs 400x400 VESA Mounts

Flat Wall Mount Fits 55B TVs 400x400 VESA Mounts

Part Number: PD168-070
  • Fits 400x400mm VESA patterns
  • Anodized aluminum and powder coated steel
  • Offers 5deg tilt up and 30deg tilt down
  • Fits 55" A-Series PDI-A55B



Flat Wall Mount for 42” and 43" TV’s

Flat Wall Mount for 42” and 43

Part Number: PD168-033
View Product

  • A low-profile, no-hassle solution to mounting the 43" A-Series Enhanced TV,  42" A-Series Enhanced TV and the International 43" SW-Series.
  • This slim design positions the TV close to the wall creating a sleek look.
  • Accommodates a 200mm VESAⓇhole pattern or multiple VESA patterns, and weighs only 3.6 lbs allowing for a simple installation. Offers tilt 5deg up and 30deg down.

6” Pan and Tilt TV Wall Bracket

6” Pan and Tilt TV Wall Bracket

Part Number: PD181-606-6
View Product

Wall brackets made to support, separate and limit movement of sets so your flat-screen sits perfectly where you need it. 6" Deep, 6.5” x 10” plate.

14” Pan and Tilt TV Wall Bracket

14” Pan and Tilt TV Wall Bracket

Part Number: PD181-606-14
View Product

Wall brackets made to support, separate and limit movement of sets so your flat-screen sits perfectly where you need it. 14" Deep, 6.5” x 10”plate

3" Pan and Tilt TV Wall Bracket

3

 Part Number: PD181-606

A sleek TV mount only 3" deep.

Universal TV Table Stand

Universal TV Table Stand

Part Number: PD168-108
  • Adjustable bracket fits up to 600x400mm VESA patterns
  • Load Capacity 88lbs / 40kg
  • Solid tempered-glass base
  • Unit Weight 15.95lbs / 7.28kg
  • Fits A-Series displays 32", 43", 55"

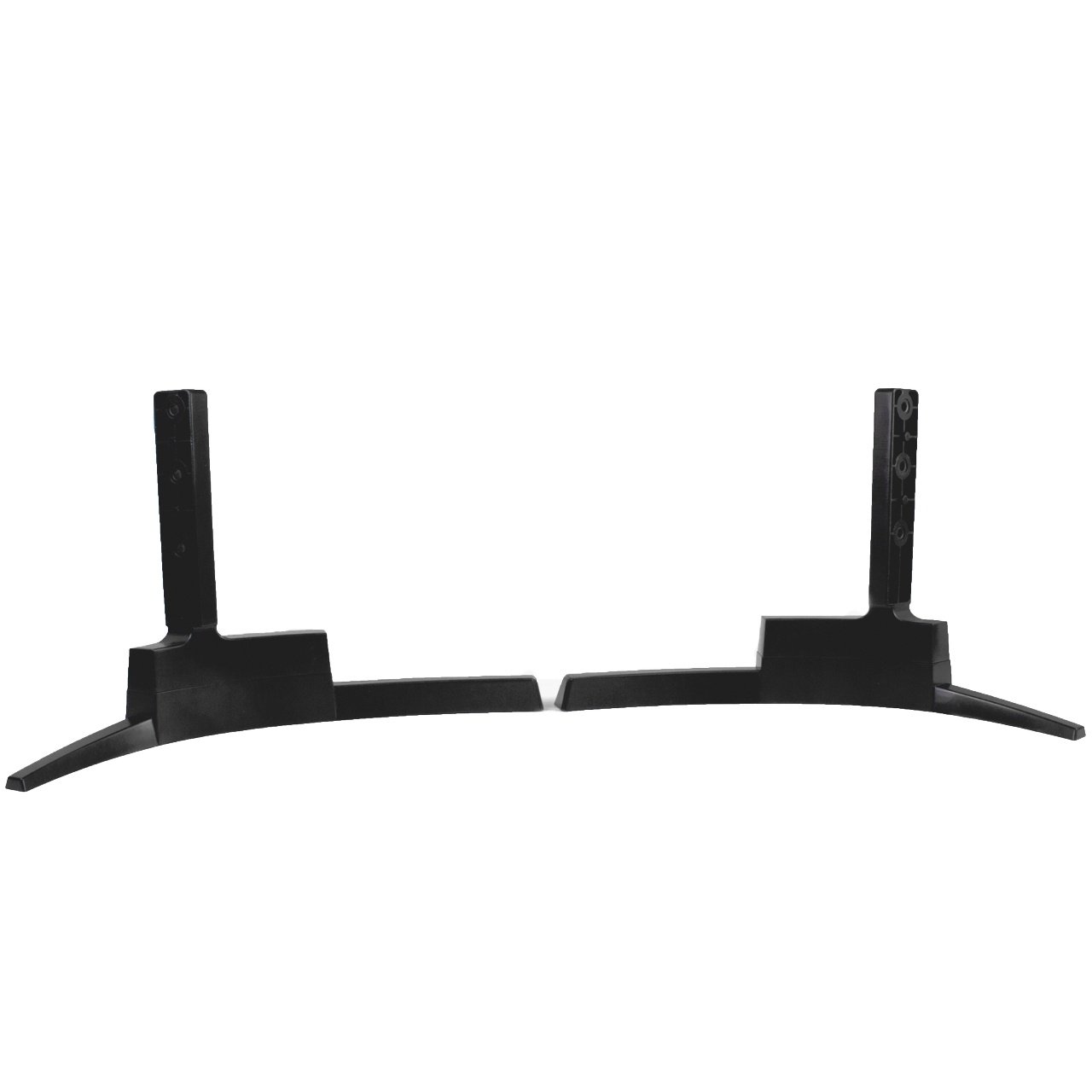

Bolt Down Table Mount fits E24/E29/E32

Bolt Down Table Mount fits E24/E29/E32
Part Number: PD181-618

  • Securely mounts tv to tabletop
  • Works with pan & tilt mount PD181-618-PAN

Bolt Down Table Stand Fits E42/E50

Bolt Down Table Stand Fits E42/E50
Part Number: PD181-660

  • Securely mounts tv to tabletop
  • Works with pan option kit PD168-004
  • Works with pan & tilt mount PD181-660-PAN
