Products / 72" Reach Arm


72" Reach Arm

1000 Series Support Arms for Personal Patient Entertainment Devices

Options to support 7 Lb. to 26 Lb. devices

Need installation help? Our ProServices team is here for you.

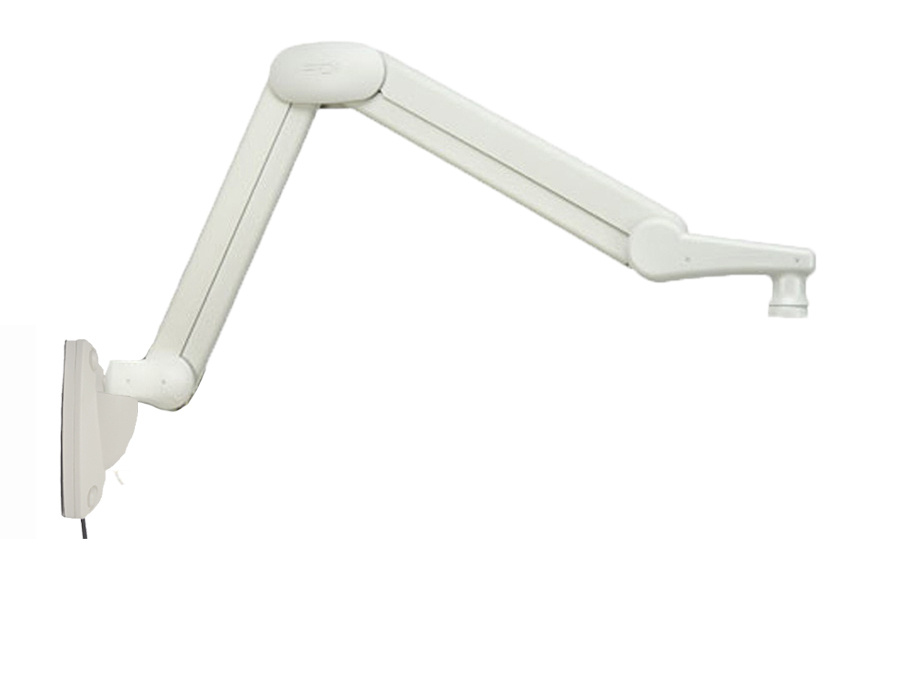

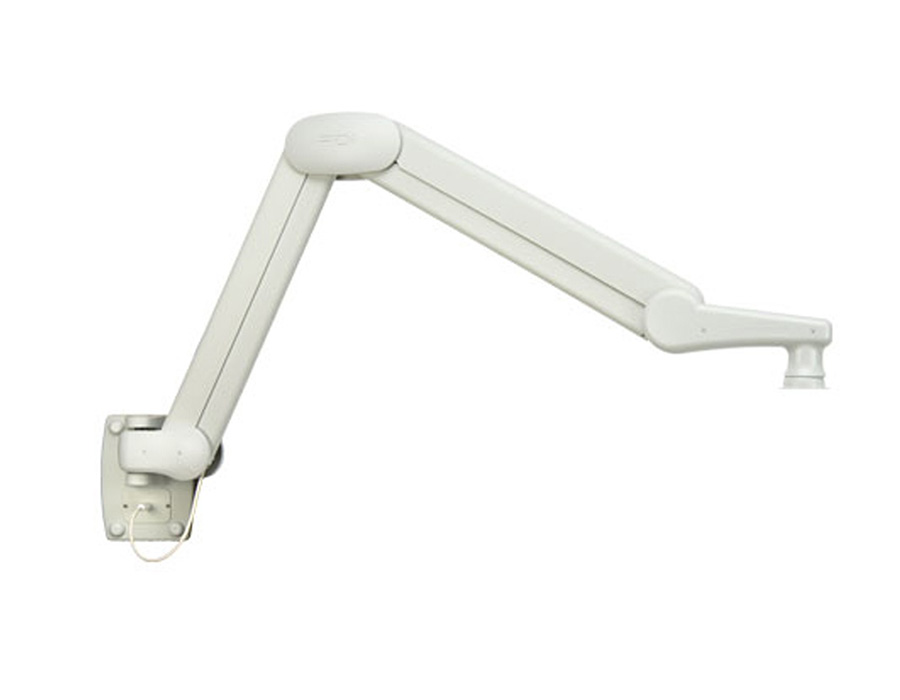

The Longest Reaching Arm in the Industry.

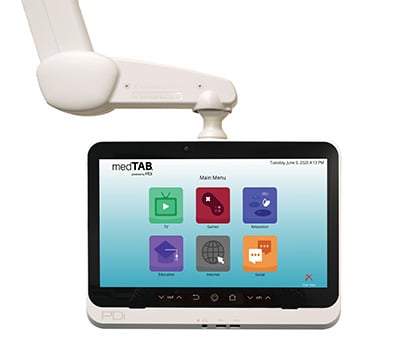

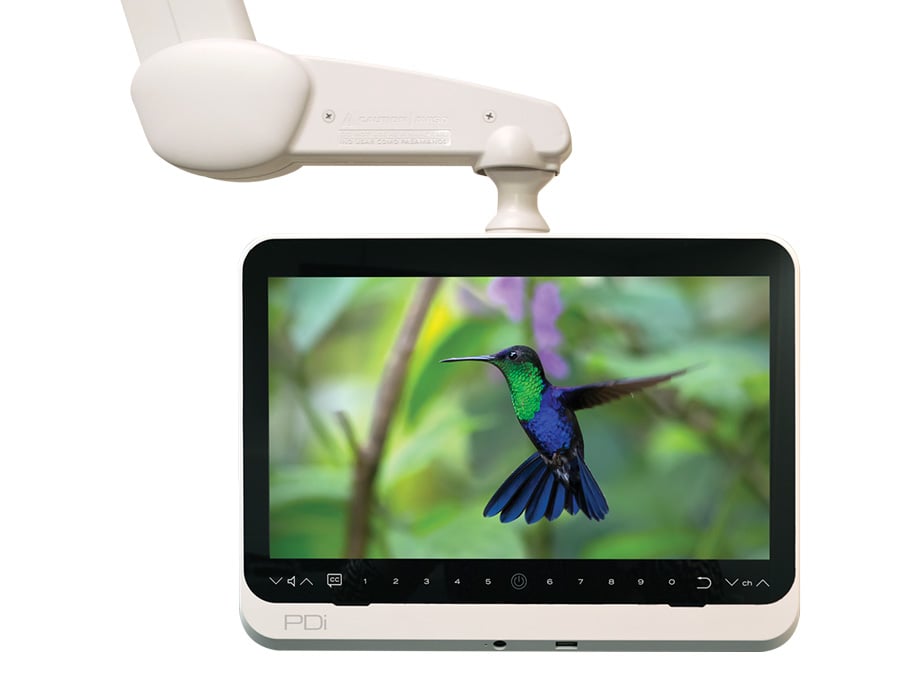

Transform the patient room and improve the experience by creating an interactive environment centered around the patient. Select the 1000 Series Arm for a sturdy 72” extension that holds a PDi display for the patient to interact with, and contain more than 3 cables for maximum functionality and usage.

UL-Listed for Healthcare Use in USA & Canada

Need installation help?

Reduce Back, Neck and Eye Strain

The PDi arm system allows the patient to easily lift, lower, tilt, swing, or rotate their TV display with just a light touch to provide the most comfortable viewing angle.

Transform the Patient Experience

Create an interactive environment centered around the patient. A personal arm-mounted PDi system brings comfort, entertainment, and connectivity to the patient space.

Theft-resistance for Patient Displays

Your technology investment is secure. A PDi mount deters theft and eliminates the risk of a device being dropped and damaged.

A Clean, Cable-free Patient Space

Power cords, ethernet cables, coax and more are out-of-sight within the arm to safely deliver continuous power and connection so the patient won’t experience interruptions to TV.

Features
  • UL Listed for Healthcare Use in USA & Canada
  • Anti-Recoil and Swivel Safety Features
  • Easy to Clean
  • Antimicrobial Powder Coatings
  • Rust Resistant
  • Standard 3 Year Warranty
  • Available in Starlight Grey, Cream, and Black
Specifications
Arm Specifications
Weight CapacityOptions to support 7 Lb. to 26 Lb. (3.2 kg to 11.8 kg)
Lift30.9" (78.5 cm)
Lower20.5" (52.1 cm)
Display Tilt+15° / -15°
Display Pan270°
Arm Rotation180°
Max Extension71.5" (181.6 cm)
Unit Weight16.5 lbs. (7.48 kg)
Product TypePneumatic nitrogen gas cylinder
VESA MountOPTIONAL
Additional Resources
1000 Arm Specs
