RF-HEMiS™ Headend TV Management Server

PD890-1009

Purchasing

Request A Quote Download Overview Sheet

Description

Make your life easier with centralized on-site head-end management integrated TV system.
Expedite your TV installation with the RF-HEMiS today!

Support a consistent brand identity with easy updates to TV splash screens!

The RF-HEMiS eliminates labor-intensive TV touches and pushes updated TV channel line-ups to every TV without disrupting patients using centralized user-friendly software.  Automatically send data over coax, set volume limit controls to improve the patient noise experience, control channel access for specific hospital wings (groups of TVs), and send custom TV splash screens automatically.

There is no limit to the number of clone files managed at one time and the RF-HEMiS is compatible with most A-Series, E-Series, P14W, medTV14 and medTV19 and medTAB devices.

Specifications & Features

Specifications

Physical

Rack Dimension 1U x 14" Deep
Rack Power 100V-240V 3A-1.5A

PDi TV Compatibility

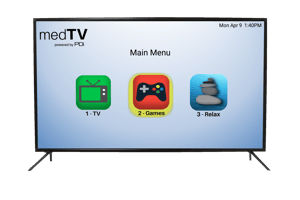

A-Series ALED A V1.05+

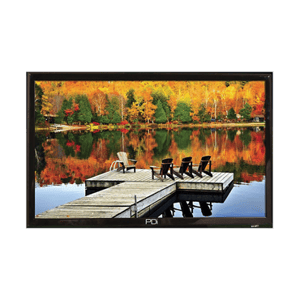

E-Series ELED A/B V2.29+
E-Series ELEDC V3.09+
medTV19 (P19TV) V3.09+
P14W 1st generation V2.26+
P14W 2nd generation and medTV14 V3.16+

RF Output

Output level (rack unit PD890-1009)

16dBmV to 40dBmV

Output level (USB unit PD401-013)

3dBmV to 34dBmV

Channel Range

2 to 135 Cable Std

Modulation

QAM for 8VSB

Connector

75Ω F-female



Features

  • Intuitive graphical user interface
  • Microsoft Windows Based Remote Administration
  • Selectable Channel Used for Updates
  • Unlimited Number of Simultaneous TV Updates
  • TV Splash Screen Updating
  • TV Firmware Updating
