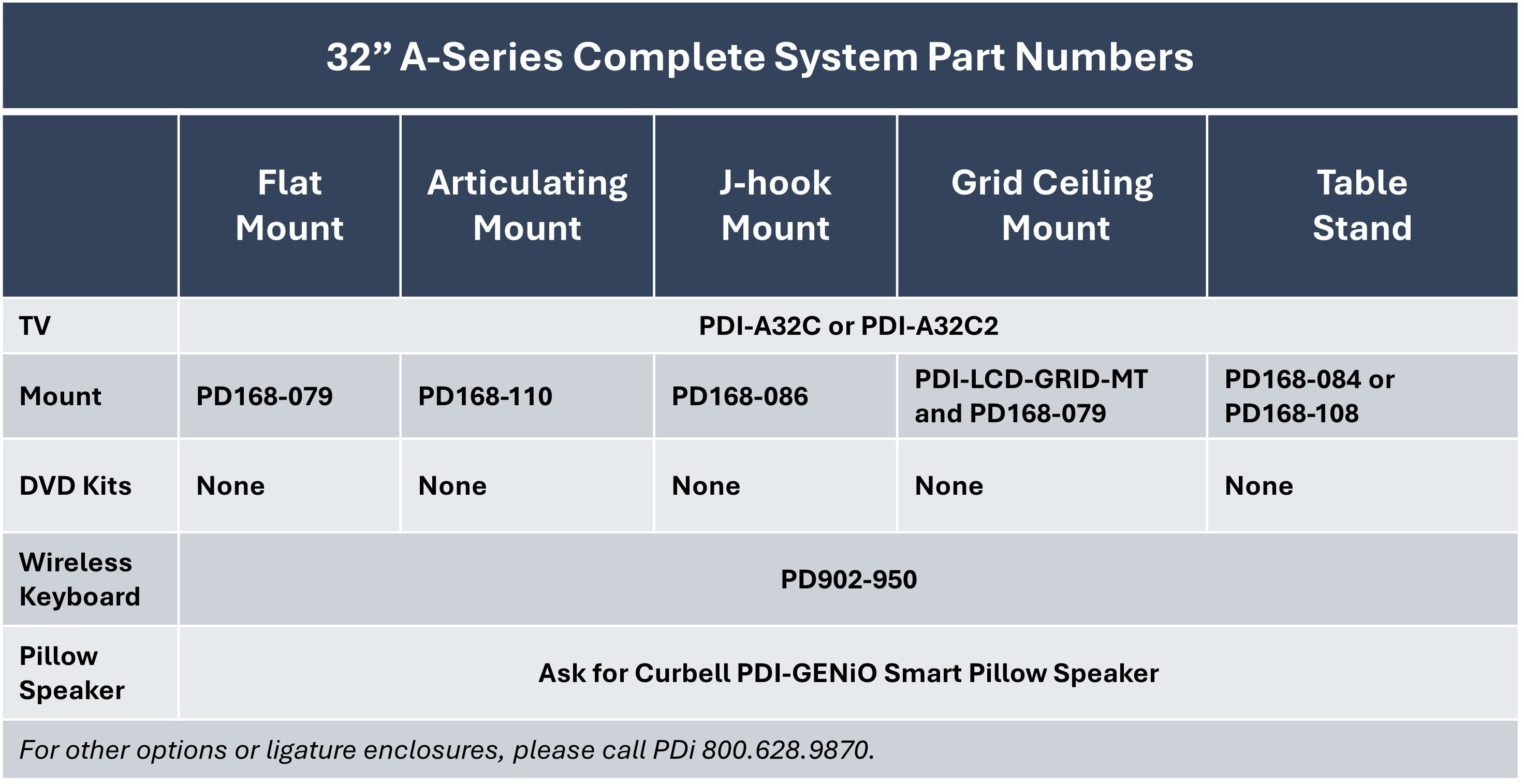

New Complete System Specifications with Power and Mounts Available
The Standard in Complete Personal Patient TVs
PDi is the trusted leader of arm-mounted patient TVs. The medTV16 arm-mounted HDTV is the latest model to satisfy and entertain patients, comfortably. Leverage existing PDi arm systems with this direct replacement to upgrade the earlier model medTV14 (P14W) and the Persona P10 televisions by PDi.
- Android™-based Smart TV with GENiO capability for remote content management
- IP-based and On-demand Entertainment - Movies, Music and More
- Secure Access to Hospital IT, Health Records, Patient Education, Meal Ordering and More
- Pillow Speaker Control
- Multi-bed codes A/B/C/D
- Multi-lingual Menu and OSD
- Volume Limiters
- USB Cloning Capability
- Multiple Inputs including 2 HDMI and 2 USB
- WIFI and Ethernet
- Designed in the USA
- 2 Year Standard Warranty
Panel
| Diagonal Size | 31.5" (80cm) |
|---|
| Display Resolution | 1366 x 768 |
|---|
| Contrast Ratio | 3000:1 |
|---|
| Luminance | |
|---|
| Backlight Life | 30,000 hours |
|---|
| Backlight Type | LED |
|---|
Input/Output
| RF Input | N/A |
|---|
| HDMI | 2 ports |
|---|
| ENET, CCI, MTI* | CCI/MTI/Smart Port |
|---|
| Speakers | 2x5Watt RMS |
|---|
| Front Headphone | N/A |
|---|
| Pillow Speaker | Selectable, +12VDC, +5VDC, OFF, -5VDC. 3 conductor, 1/4" female I/O |
|---|
*Call to inquire about additional inputs available.
Dimensions
| Weight | 19 lbs. (8.6 kg) shipping weight |
|---|
Unit Dimension -
Swivel (W/H/D) | N/A |
|---|
Unit Dimension -
VESA (W/H/D) | 100x200, 6mm |
|---|
| MPEG4/MPEG2 | MPEG4/Pro:Idiom |
|---|
Support Standards
| Antenna Input | N/A |
|---|
| Pro:Idiom | Yes |
|---|
| Dolby Audio | Yes |
|---|
Power
| Source | |
|---|
| Max Consumption | 50W |
|---|
| Normal Consumption | <15W |
|---|
| Energy Saver Mode Consumption | <1W |
|---|
Regulatory
| UL/cUL 60065 Annex Q | Yes |
|---|
| FCC Title 15, Part 47, Subpart B | - |
|---|
Set-Up Features
| Audio Volume Limiter | Yes |
|---|
| Internal Speaker Disable | Yes |
|---|
| Min/Max Volume Limiter | Yes |
|---|
| Start/Power-on Volume | Yes |
|---|
| USB Cloning Capable | Yes |
|---|
| TV Cloning | Yes |
|---|
| Firmware Updates | Yes |
|---|
| PDi Program Remote | PD108-420 |
|---|
| Patient TV/DVD Remote | |
|---|
| Patient TV-only Remote | |
|---|
| Parental Control (V-CHIP) | Yes |
|---|
| Auto Power On | Yes |
|---|
| Programmable Source Selection | Yes |
|---|
| Password Protected Set-up Menus | Yes |
|---|
| Channel Enable/Disable | Yes |
|---|
| Channel Aliasing/Remapping | - |
|---|
| Menu OSD | English/French/Spanish |
|---|
| Factory Reset | Yes |
|---|
Computer Features
| Operating System | Android 7.0 (Nougat) |
|---|
| CPU | Quad Core |
|---|
| Wifi | 802.11n |
|---|
| Wireless Audio | Yes |
|---|
| Ethernet | Yes |
|---|
| Touchscreen | N/A |
|---|
| RAM | 1GB |
|---|
| Storage | 8GB Flash |
|---|
| Camera/Microphone | N/A |
|---|
